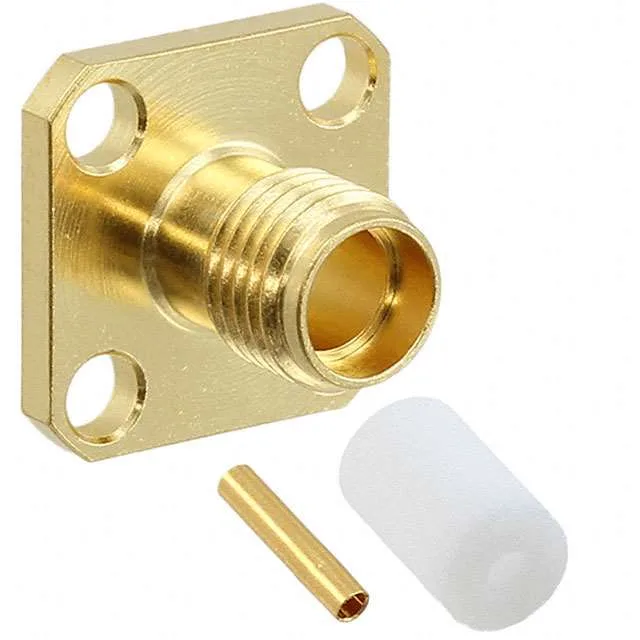

1-1478930-0 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Greenpar 1-1478930-0 SMA Jack, 18 GHz, 50 Ohm

MPN1-1478930-0
Obsolete

TE Connectivity Greenpar SMA jack, 1-1478930-0, 50 Ohm, 18 GHz, panel mount flange, gold body, RG-402 semi-rigid cable, threaded fastening.

$9.0000Ref. price · indicative, final on quote
1-1478930-0 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

1-1478930-0 Technical Specifications
ParameterValue
SeriesGreenpar
Mounting typePanel Mount
Connector typeJack, Female Socket
Fastening typeThreaded
Frequency - max18 GHz
Mounting featureFlange
Cable groupRG-402 (.141\" Semi Rigid)
Body materialStainless Steel
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance50 Ohms
Body finishGold
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

It is a 50 Ohm RF interconnect rated to 18 GHz, built for RG-402 (.141" semi-rigid) cable.

The 1-1478930-0 is built for RG-402 (.141" semi-rigid) cable. The shield terminates via solder, and the center contact is also solder-terminated. The kit includes the connector body, one contact, and one ferrule — three pieces total, bulk packaged. The dielectric is PTFE, which keeps insertion loss stable across the 18 GHz band and handles the soldering heat during assembly without degrading.

Construction and Mounting

Panel mount with a flange, threaded for the mating plug. The stainless steel body carries a gold finish — stainless gives the mechanical strength for the threaded coupling under torque, and the gold layer protects the mating interface from oxidation over the 500-cycle life. The center contact is beryllium copper with gold plating, chosen for spring properties and low contact resistance at RF frequencies.

Frequently asked questions

What cable does 1-1478930-0 fit?

The 1-1478930-0 is designed for RG-402 (.141" semi-rigid) cable. It is not specified for RG-316 or other cable types — the interface dimensions and ferrule are specific to the.141" diameter semi-rigid construction.

What is the impedance of 1-1478930-0?

The 1-1478930-0 is a 50 Ohm SMA jack, rated to 18 GHz. The impedance is set by the PTFE dielectric and the geometry of the center contact and outer conductor.
