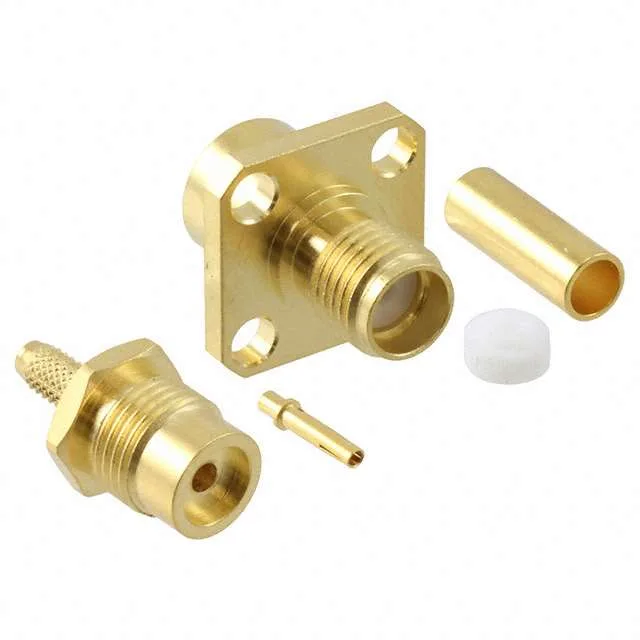

1-1478951-0 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Greenpar 1-1478951-0 SMA Jack, 50 Ohm, 18 GHz

MPN1-1478951-0
Active

TE Connectivity Greenpar SMA jack, female socket, 50 Ohms, 18 GHz, panel mount with flange, crimp shield termination, gold body, 500 mating cycles, includes connector, contact, ferrule, 2 insulators.

$4.3300Ref. price · indicative, final on quote
1-1478951-0 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

1-1478951-0 Technical Specifications
ParameterValue
SeriesGreenpar
Mounting typePanel Mount
Connector typeJack, Female Socket
Fastening typeThreaded
Frequency - max18 GHz
Mounting featureFlange
Cable groupRG-174A, 188A, 316
Body materialStainless Steel
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Includes5 pcs - 1 Connector, 1 Contact, 1 Ferrule, 2 Insulators
Impedance50 Ohms
Body finishGold
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

SMA Jack for RG-174-Style Coax — Kit Includes Ferrule and Insulators

The 1-1478951-0: It is a panel-mount flange-style connector with threaded coupling, designed for RG-174A, 188A, and 316 cable groups. The kit ships as 5 pieces: one connector body, one contact, one ferrule, and two insulators — everything needed to terminate a cable in one order line.

18 GHz Bandwidth, 500 Mating Cycles — Gold-Plated Throughout

The 50 Ohm impedance and 18 GHz frequency ceiling place this jack in the standard SMA performance band — good for test equipment, antenna feeds, and instrumentation links where the signal path needs to stay clean through the connector. The PTFE dielectric keeps phase stable across temperature.

Cable Termination — Crimp Shield, Solder Centre

Shield termination is crimp; the centre contact is solder. The kit includes the ferrule for the braid and the insulators that position the dielectric and centre pin. The cable group is RG-174A, 188A, or 316.

Frequently asked questions

What cable group works with 1-1478951-0?

The 1-1478951-0 is designed for RG-174A, 188A, and 316 cable groups.

Does 1-1478951-0 come with the ferrule and insulators?

Yes, the kit includes 5 pieces: 1 connector, 1 contact, 1 ferrule, and 2 insulators.

What is the impedance of 1-1478951-0?

The impedance is 50 Ohms.

How many mating cycles does 1-1478951-0 support?

Rated for 500 mating cycles.

Where can I buy 1-1478951-0?

This part is active and sourced per RFQ.
