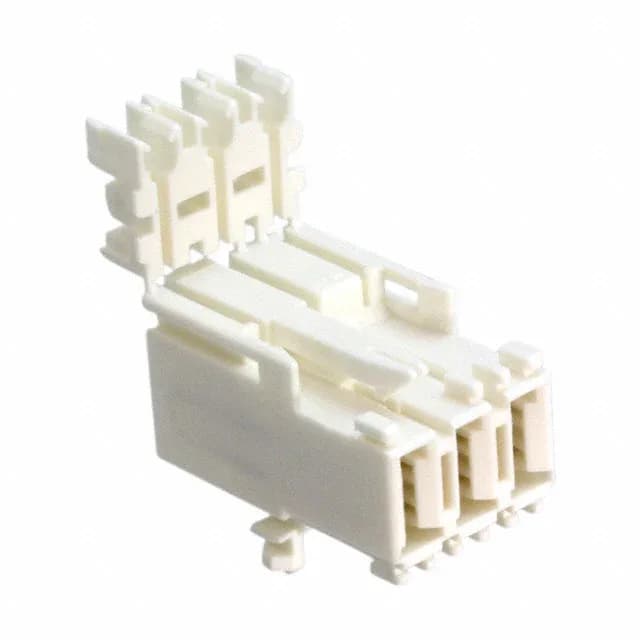

TE Connectivity Mark II series, 1-1534072-3, 3-position IDC receptacle, 0.197" (5.00mm) pitch, 1 row, tin-plated blade pin contacts, latch lock, free-hanging, bulk.
| Parameter | Value |
|---|---|
| Series | Mark II |
| Wire type | Discrete |
| Type | Blade Pin |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Latch Lock |
| Cable termination | IDC |
| Color | Natural |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Features | Dual Wire Exit |
| Contact finish | Tin |
| Rows | 1 |
| Positions | 3 |
The TE Connectivity Mark II 1-1534072-3 is a 3-position, single-row IDC receptacle for discrete wire. It terminates wire directly via insulation displacement — no crimp contacts or separate housings needed. Dual wire exit means the cable can leave from either side of the receptacle body, which helps when routing the harness around an enclosure edge or a bracket.
The pitch is 0.197" (5.00mm). The contact finish is tin on the blade pin contacts.
Yes, it is ROHS3 compliant.
The 1-1534072-3 is a receptacle that mates with a Mark II series header of the same 0.197" (5.00mm) pitch and 3-position count. The latch lock on the receptacle engages with the locking ramp on the matching header.
