TE Connectivity AMP Connectors 1-1534072-7 — Circular Connectors

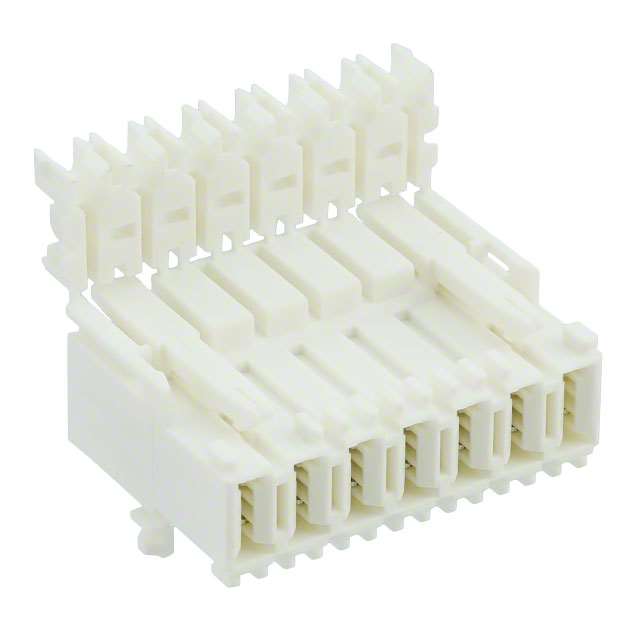

TE Mark II 1-1534072-7 Receptacle, 7 Pos, 5.00mm

MPN1-1534072-7
Obsolete

TE Connectivity Mark II series receptacle, 1-1534072-7, 7 positions, 1 row, 0.197" (5.00mm) pitch, IDC termination, tin-plated blade pin contacts, latch lock, free hanging, natural.

$1.6600Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-1534072-7 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

1-1534072-7 specifications
ParameterValue
SeriesMark II
Wire typeDiscrete
TypeBlade Pin
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Cable terminationIDC
ColorNatural
Pitch0.197\" (5.00mm)
PackageBulk
FeaturesDual Wire Exit
Contact finishTin
Rows1
Positions7

Product details

It carries blade pin contacts with a tin finish, spaced on a 0.197" (5.00mm) pitch, and secures the mate with a latch lock.

Sourcing and Lifecycle Reality

The 1-1534072-7 is listed as Obsolete on the manufacturer's lifecycle record.

IDC Termination and Harness Assembly

The IDC (insulation displacement contact) termination means the wire is pressed into a slot that cuts through the insulation and grips the conductor — no stripping, no crimping. This receptacle accepts discrete wires (not ribbon cable), and the dual wire exit feature gives flexibility in routing the cable bundle out of either side of the housing.

What the Key Specs Mean for Your Fit

The 7-position count is the BOM line match — verify your circuit count against this number before committing.

Frequently asked questions

What is the replacement for 1-1534072-7?

For a new design, look at current TE Mark II series receptacles with the same 5.00 mm pitch and IDC termination that match your required position count.

What is the mating plug for 1-1534072-7?

The 1-1534072-7 is a receptacle with blade pin contacts. It mates with a Mark II series plug housing that carries the matching socket contacts, using the same 5.00 mm pitch and latch lock interface. The exact plug order code depends on your position count and contact termination preference.
