TE Connectivity Buchanan plug, order code 1-1546122-1, 11 positions, single level, 0.200" (5.08mm) pitch, 15 A, 300 V, tin-plated mating contacts, free hanging, screw - rising cage clamp termination.

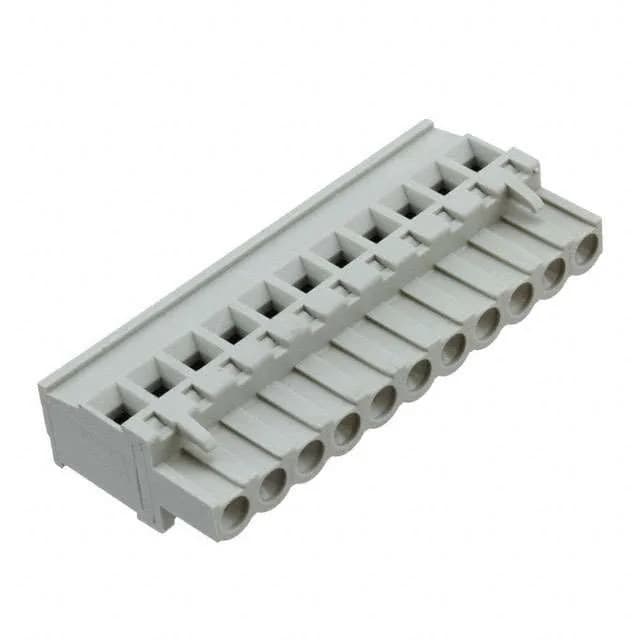

1-1546122-1 TE Connectivity Buchanan Plug, 11 Pos, 5.08mm
MPN1-1546122-1
Active
TE Connectivity Buchanan plug, order code 1-1546122-1, 11 positions, single level, 0.200" (5.08mm) pitch, 15 A, 300 V, tin-plated mating contacts, free hanging, screw - rising cage clamp termination.
$11.1184Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | Buchanan |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Plug wire entry | 90° |
| Wire strip length | 6-7.5mm |
| Wire gauge or range - AWG | 12-30 AWG |
| Wire gauge or range - mm2 | 0.05-3mm² |
| Operating temperature | -40°C ~ 110°C |
| Color | Gray |
| Contact material | Phosphor Bronze |
All specifications
| Parameter | Value |
|---|---|
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.984\" (25.00mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
| Features | Retention Latches (Wire Side) |
| Screw size | M3 |
| Torque - screw | 0.79 Nm (7.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 11 |
| Positions per level | 11 |
| Contact mating finish | Tin |
