What This Barrier Block Does in the Panel

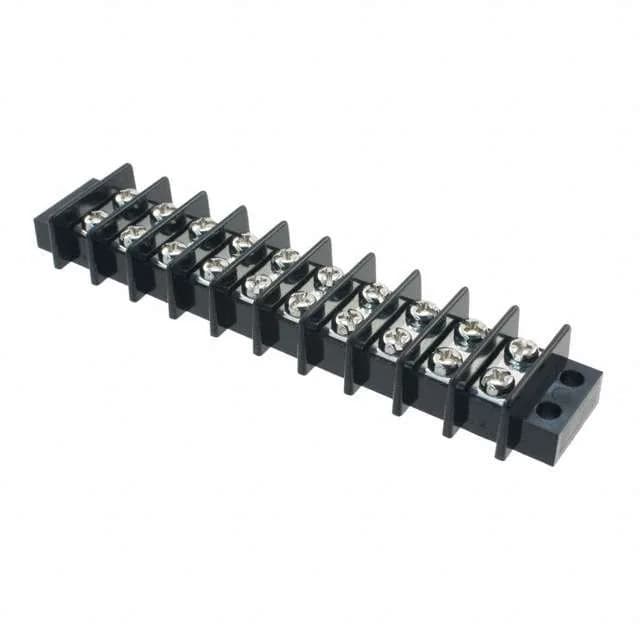

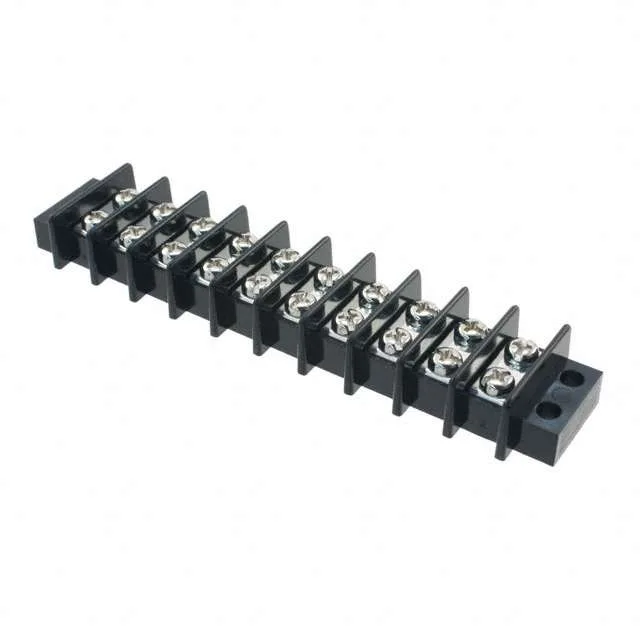

The 1-1546670-0: The 0.437" (11.10 mm) pitch gives enough spacing between terminals to handle the 25 A without excessive heat buildup between adjacent wires — the dual-wall barrier adds physical isolation between each position, reducing the chance of a flashover at the rated voltage. It accepts 14-22 AWG wire on both rows, with 20 wire entries total (two per circuit), so you can daisy-chain a feed-through without a separate jumper.
Mounts to a chassis or panel via the integral flange — the flange provides a mechanical anchor so the screw-termination torque doesn't twist the block off the panel. Top termination is screw-type with a steel screw and nickel finish; bottom termination is closed, meaning the screw clamps down on the wire from above with no through-hole access underneath. This is a common configuration for a barrier strip that sits against a metal panel — the closed bottom keeps the screw from bottoming out into the panel surface.
