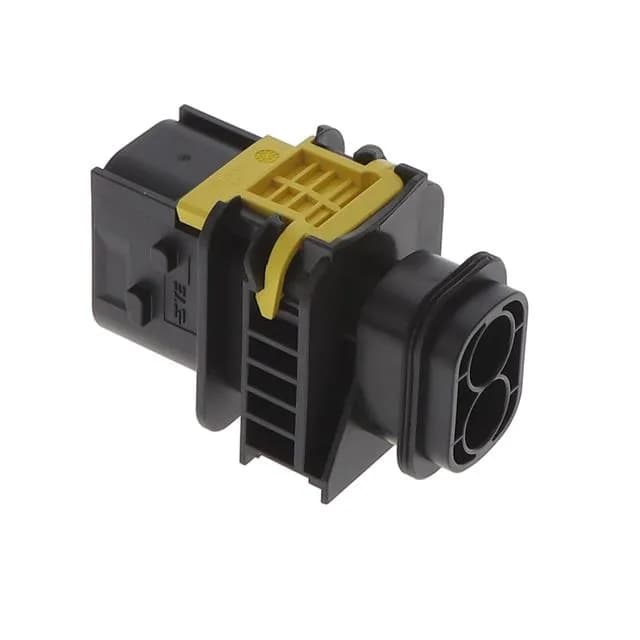

TE Connectivity Heavy Duty Sealed Connector Series, MCP 6.3, 1-1564544-1, Plug Housing, 2 Positions, 9.00mm Pitch, 1 Row, Panel Mount, Crimp Termination, Slide-On Fastening, Sealed, Black, PBT Glass-Filled Housing, -40°C to 140°C.
| Parameter | Value |
|---|---|
| Series | Heavy Duty Sealed Connector Series, MCP 6.3 |
| Type | Tab |
| Mounting | Panel Mount |
| Connector type | Plug |
| Fastening type | Slide-On |
| Operating temperature | -40°C ~ 140°C |
| Color | Black |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Note | Contacts Not Included |
| Pitch | 0.354\" (9.00mm) |
| Package | Bulk |
| Features | Sealed |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 2 |
It's a panel-mount plug with a 9.00 mm pitch, designed to accept tab-style crimp contacts and seal against moisture and debris in harsh environments.
The 9.00 mm pitch accommodates larger-gauge terminals. The sealed housing prevents water spray and dust ingress when mated. Slide-on fastening provides tool-less push-to-connect assembly.
The 1-1564544-1 is an active-production part sourced to order through independent distribution. Submit an RFQ for current availability and pricing — stock positions are confirmed at quote time.
Yes, the 1-1564544-1 is a sealed housing, designed for use in environments where moisture, dust, or spray ingress must be prevented when mated with the corresponding receptacle.
