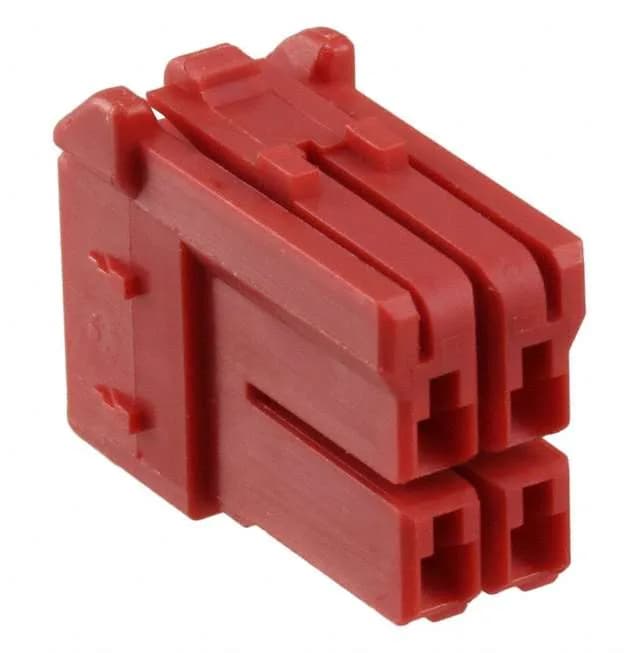

TE Connectivity Grace Inertia GIC plug housing, 1-1565083-2, 4-position dual-row, 3.50mm pitch, 0.189" row spacing, latch lock, free-hanging, crimp termination, PA66, red, -30°C to 105°C.
| Parameter | Value |
|---|---|
| Series | Grace Inertia, GIC |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Fastening type | Latch Lock |
| Operating temperature | -30°C ~ 105°C |
| Color | Red |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Note | Contacts Not Included |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Row spacing | 0.189\" (4.80mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 4 |
The 1-1565083-2: It uses a 3.50mm pitch with 0.189" row spacing, giving a compact but serviceable footprint for wire-to-wire or wire-to-board harness assemblies.
You order the female crimp terminals separately, sized for your wire gauge. The red colour is a visual key for the assembly line — it distinguishes this plug from other GIC housings in a multi-connector harness.
1-1565083-2 is sourced to order through independent distribution. Submit an RFQ for current pricing and availability — confirmed at quote time.
The 1-1565083-2 housing accepts female crimp socket terminals from the Grace Inertia GIC series. The contacts are ordered separately — the housing ships empty.
