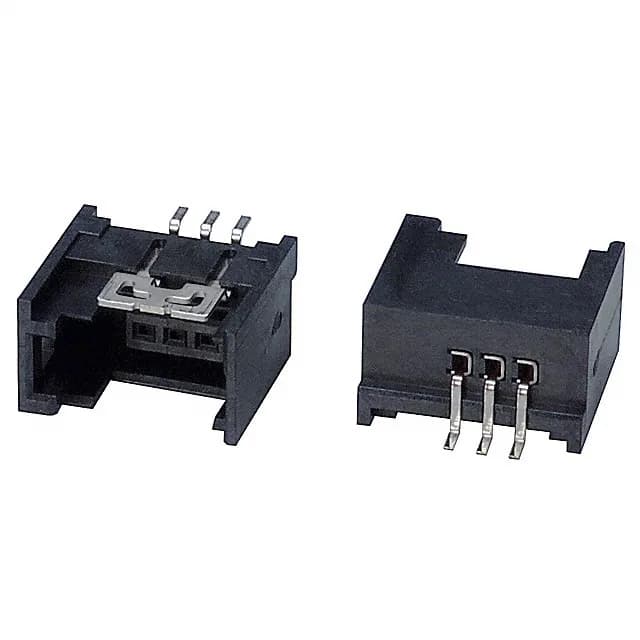

TE 1-1565994-3 RITS Header, 3 Pos, 2.00mm, Gold, SMT, Latch

MPN1-1565994-3
Active

TE Connectivity AMP Connectors RITS series, 1-1565994-3, header, female socket, 3 positions, 2.00 mm pitch, surface-mount right-angle, gold mating finish, latch holder, UL94 V-0.

$1.7528Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-1565994-3 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-1565994-3 key specifications
ParameterValue
SeriesRITS
TypeFemale Socket
MountingSurface Mount, Right Angle
Connector typeHeader
Fastening typeLatch Holder
Voltage rating32VDC
Operating temperature-30°C ~ 75°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.303\" (7.70mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

1-1565994-3 additional specifications
ParameterValue
StyleBoard to Cable/Wire
PackageTape & Reel (TR) Cut Tape (CT)
TerminationSolder
Contact shapeSquare
Rows1
Pitch0.079\" (2.00mm)
Positions3
Contact finish - postTin
Contact finish - matingGold
Contact finish thickness - post39.4µin (1.00µm)
Contact finish thickness - mating8.00µin (0.203µm)

Product details

3-Position, 2.00 mm Pitch, SMT Right-Angle Header

The 1-1565994-3 is a 3-circuit, single-row header from TE's RITS series, pitched at 2.00 mm between contacts. That pitch sets the PCB footprint — trace routing between pads is straightforward, but the narrow spacing limits per-contact current to the signal level. The post finish is tin at 39.4 µinch, standard for solder-joint reliability. This matters in applications where vibration could work a plain friction-fit header loose, like in portable equipment or automotive interior modules.

Where This Fits in the RITS Series

The 1-1565994-3 is the 3-position variant of the RITS family, which covers 2 to 12 positions in single- and dual-row configurations. The sibling 1-1565994-2 is a 2-position version — same pitch, same gold mating finish, same SMT right-angle footprint. Confirm the receptacle part number against your cable assembly before committing the BOM.

Frequently asked questions

Where can I buy TE 1-1565994-3 available via RFQ confirmation?

Sourced through independent distribution against an RFQ. Submit a request with your target quantity for current pricing and lead time.

What is the pitch of TE 1-1565994-3?

2.00 mm (0.079") between contacts, single row.

What is the compatible mating connector for 1-1565994-3?

A RITS series receptacle housing with matching 2.00 mm pitch and latch holder. The exact part number depends on your wire gauge and circuit count — confirm against the TE application drawing.
