Gold Mating Surface and Temperature Range
The 1-1565994-4: The solder posts are tin-plated (39.4 µinch / 1.00 µm) for reliable soldering to the PCB. Rated for -30°C to 75°C operating range and 32 VDC maximum.
1-1565994-4 TE Connectivity RITS 4-Pin Female Header 2.00mm
MPN1-1565994-4
Active

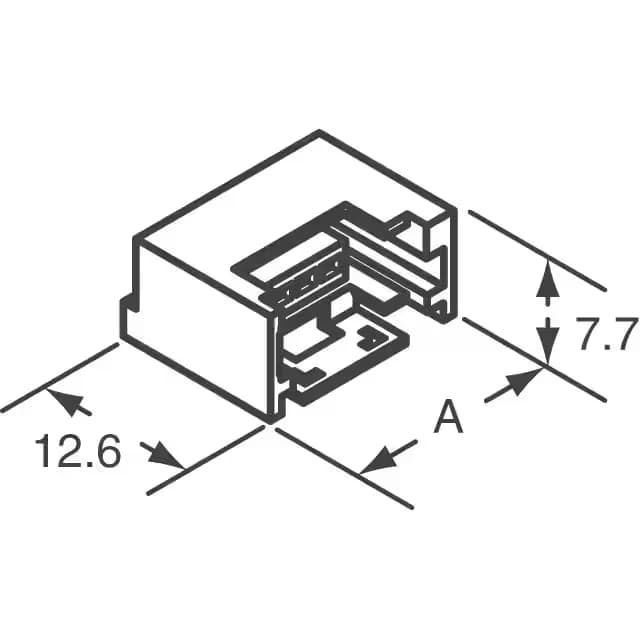

TE Connectivity AMP Connectors RITS series, 1-1565994-4: 4-position female socket header, 2.00mm pitch, right-angle surface mount, gold-plated mating contacts, latch holder, UL94 V-0 black housing.
$3.4400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesRITS
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | RITS |
| Type | Female Socket |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 32VDC |
| Operating temperature | -30°C~75°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.303\" (7.70mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 39.4µin (1.00µm) |
| Contact finish thickness - mating | 8.00µin (0.203µm) |
Product details
Frequently asked questions
What is the exact pitch and orientation of 1-1565994-4?
2.00mm pitch, right-angle surface mount orientation. The header mates with a cable receptacle at a 90-degree angle to the PCB.
Is 1-1565994-4 RoHS compliant?
Yes, ROHS3 compliant per the manufacturer's listing.
