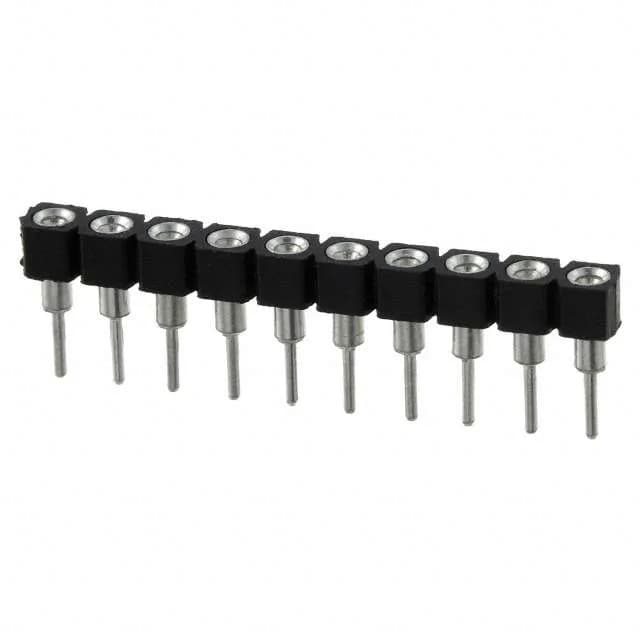

TE Connectivity AMP Connectors 1-1571995-0
MPN1-1571995-0
Obsolete
$0.4700Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | SIP |
| Series | 510 |
| Mounting | Through Hole |
| Housing material | Thermoplastic, Polyester |
| Contact material - post | Copper |
| Contact material - mating | Beryllium Copper |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
| Pitch | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Termination post length | 0.125\" (3.18mm) |
| Contact finish thickness - post | 20.0µin (0.51µm) |
| Number of positions or pins | 10 (2 x 5) |
