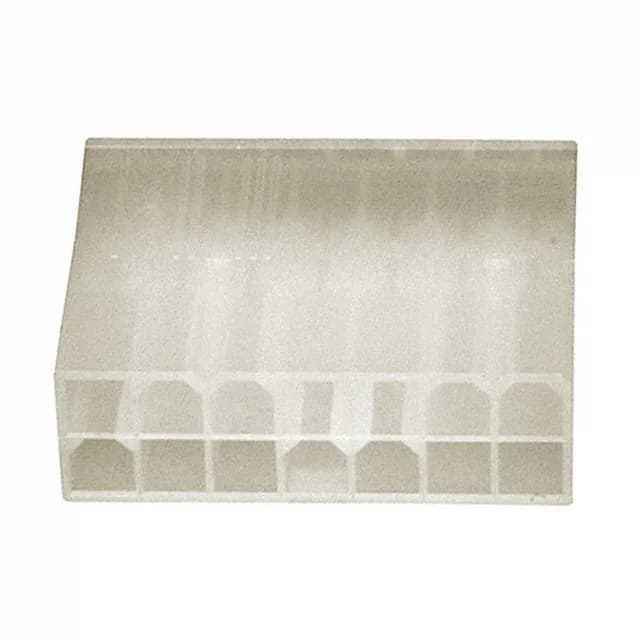

TE Connectivity VAL-U-LOK plug housing, 1-1586000-4, 14 positions, 2 rows, 4.20mm pitch, natural PA66, free-hanging, locking ramp, crimp termination, contacts not included.
| Parameter | Value |
|---|---|
| Series | VAL-U-LOK |
| Type | Male Pin |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Fastening type | Locking Ramp |
| Operating temperature | -40°C ~ 105°C |
| Color | Natural |
| Insulation material | Polyamide (PA), Nylon |
| Note | Contacts Not Included |
| Pitch | 0.165\" (4.20mm) |
| Package | Bulk |
| Row spacing | 0.165\" (4.20mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 14 |
14 positions in two rows on a 4.20 mm pitch. Row spacing is also 4.20 mm. Free-hanging mount.
For terminals, order VAL-U-LOK male pin crimp contacts separately.
The VAL-U-LOK series is TE Connectivity proprietary. Use genuine housing and terminals for the locking ramp to engage correctly.
Current pricing and stock availability are confirmed at quote time – submit an RFQ for your BOM quantity.
No – the housing ships without contacts. The listing explicitly notes 'Contacts Not Included'. You need to order the VAL-U-LOK male pin crimp terminals separately for your wire gauge.
