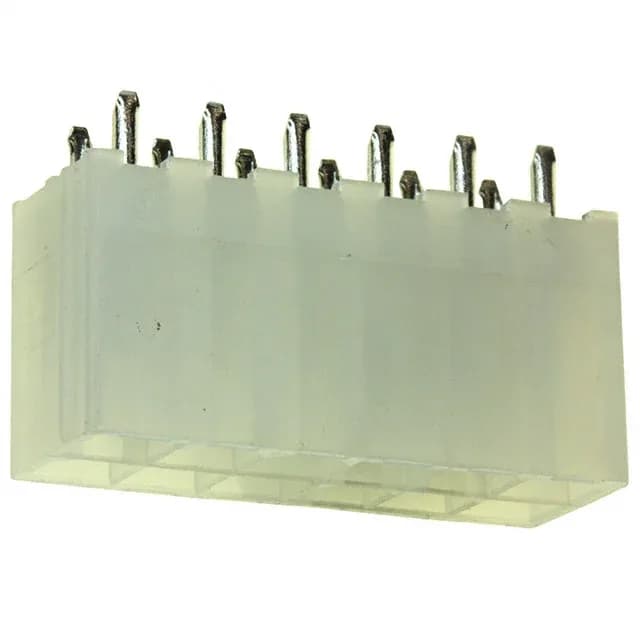

TE Connectivity VAL-U-LOK dual-row header, 12 positions, 0.165" (4.20mm) pitch, 9 A per circuit at 600 VAC. Tin-plated brass contacts, through-hole solder termination, shrouded 4-wall housing with locking ramp. Operating temperature -40°C to 105°C.
| Parameter | Value |
|---|---|
| Series | VAL-U-LOK |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 600VAC |
| Current rating | 9A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass Alloy |
| Insulation color | Natural |
| Insulation height | 0.504\" (12.80mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-2 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial, Lighting |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.165\" (4.20mm) |
| Positions | 12 |
| Row spacing - mating | 0.165\" (4.20mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 80.0µin (2.03µm) |
| Contact finish thickness - mating | 80.0µin (2.03µm) |
This header mates with VAL-U-LOK receptacle housings (e.g., 1-1586037-2's companion) that accept 20-24 AWG crimp terminals. The through-hole solder termination suits standard wave-solder assembly.
Submit an RFQ with your target quantity. We source this active-production part to order; current pricing and lead time are confirmed at quote time.
Yes, it is ROHS3 compliant.
It is a 12-position, dual-row header with all positions loaded. The pinout follows the standard 4.20mm row spacing — consult the product drawing for the exact circuit-to-pin mapping.
