TE Connectivity AMP Connectors 1-1586037-6 — Pin Headers

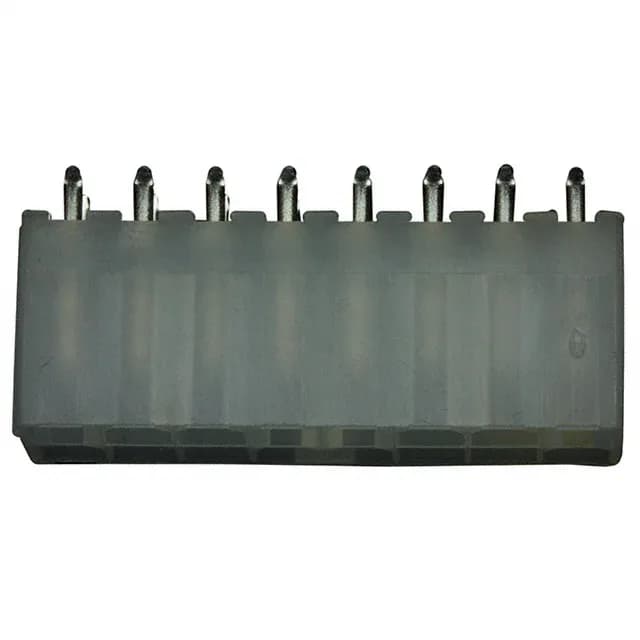

1-1586037-6 TE VAL-U-LOK Header 16 Pos 4.2mm Pitch

MPN1-1586037-6
Active

TE Connectivity AMP Connectors VAL-U-LOK, Board to Cable/Wire, Header, 16 Circuits, Dual Row, 4.20mm Pitch, Shrouded 4-Wall, Locking Ramp, Tin-Plated Brass Contacts, 9A at 600VAC, Through-Hole Solder, UL94 V-2 Nylon, -40 to 105°C, RoHS

$1.2200Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-1586037-6 datasheet (PDF)
RoHSRoHS Compliant
SeriesVAL-U-LOK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-1586037-6 key specifications
ParameterValue
SeriesVAL-U-LOK
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating600VAC
Current rating9A
Operating temperature-40°C ~ 105°C
Contact materialBrass Alloy
Insulation colorNatural
Insulation height0.504\" (12.80mm)
Insulation materialPolyamide (PA), Nylon

All specifications

1-1586037-6 additional specifications
ParameterValue
Material flammability ratingUL94 V-2
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial, Lighting
Contact shapeSquare
Rows2
Pitch0.165\" (4.20mm)
Positions16
Row spacing - mating0.165\" (4.20mm)
Contact finish - postTin
Contact length - post0.138\" (3.50mm)
Contact finish - matingTin
Contact finish thickness - post80.0µin (2.03µm)
Contact finish thickness - mating80.0µin (2.03µm)

Product details

4.20 mm pitch, 16-position shrouded header

The 1-1586037-6 is a 16-position dual-row header from TE's VAL-U-LOK series, on 0.165" (4.20 mm) pitch — the same spacing as the industry-standard Mini-Fit Jr. footprint, so the board layout matches a common power/signal connector family. Rated 9 A per circuit at 600 VAC, the tin-plated brass contacts carry enough current for a multi-wire power harness or distribution bus inside an enclosure.

Through-hole termination and locking ramp

Insulator is UL94 V-2 rated nylon, natural colour, good for general-purpose and lighting applications inside an enclosure where a V-2 flame rating is acceptable.

RoHS compliant per TE's current declaration, so it passes the standard environmental compliance gate for new builds.

Frequently asked questions

What is the 1-1586037-6's listed series?

The 1-1586037-6 belongs to the VAL-U-LOK series.

What is the 1-1586037-6's listed style on this component line?

The connector style is Board to Cable/Wire.

Will 1-1586037-6 drop into a panel specified around the 4-1775099-7 without rewiring?

The 4-1775099-7 is an ATX-series header — a different connector family from VAL-U-LOK. While it shares the same 0.165 inch (4.20 mm) pitch, the series and contact finish thickness differ, so it is not a guaranteed drop-in swap and the receptacle compatibility must be confirmed before specifying.
