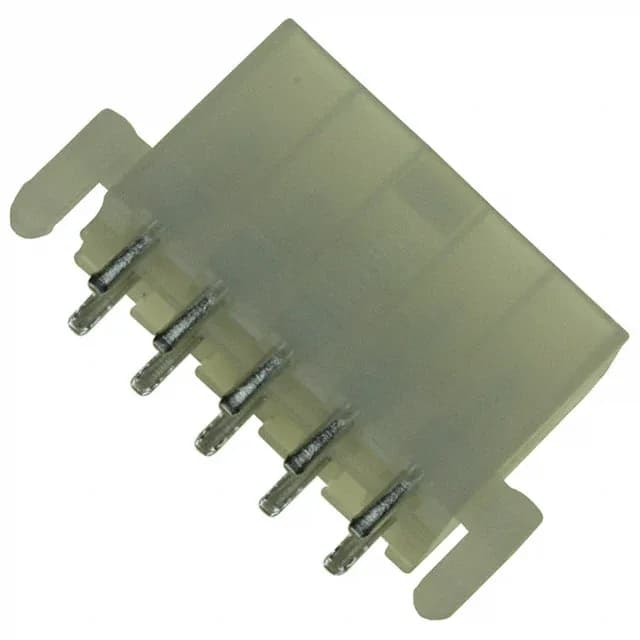

TE Connectivity VAL-U-LOK 1-1586039-0, 10-position dual-row board-to-cable header, 0.165" (4.20mm) pitch, 9 A per circuit at 600VAC, tin-plated brass contacts on both mating and post, shrouded 4-wall housing with locking ramp, board-lock feature, through-hole solder termination, -40°C to 105°C operating range, UL94 V-2 polyamide insulator, ROHS3 compliant, bulk pack.
| Parameter | Value |
|---|---|
| Series | VAL-U-LOK |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 600VAC |
| Current rating | 9A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass Alloy |
| Insulation color | Natural |
| Insulation height | 0.504\" (12.80mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-2 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial, Lighting |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.165\" (4.20mm) |
| Positions | 10 |
| Row spacing - mating | 0.165\" (4.20mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 80.0µin (2.03µm) |
| Contact finish thickness - mating | 80.0µin (2.03µm) |
It uses a 4.20mm pitch, carries 9A per circuit at 600VAC, and is terminated via through-hole solder. The locking ramp fastening type ensures the mating connector stays engaged under vibration — a practical feature for industrial and lighting environments where the assembly sees movement.
This reduces the risk of lifted pads or shifted pins in production.
This header mates with a VAL-U-LOK receptacle housing (wire-to-board) that accepts the matching crimp terminals. The locking ramp on the header engages with the receptacle latch for secure mating.
Yes, it is ROHS3 compliant per the lifecycle record.
Yes, the header includes a board lock feature for through-hole retention during soldering and mechanical strain.
