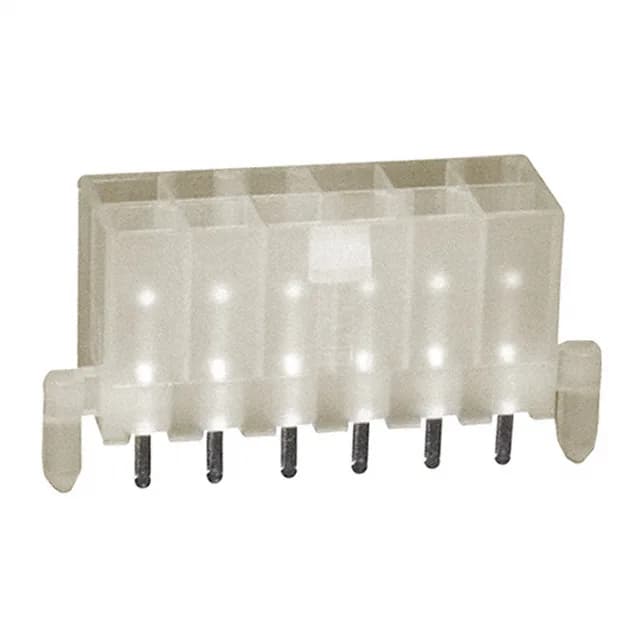

1-1586039-2 TE VAL-U-LOK 12-Pin Header 4.2mm Pitch

MPN1-1586039-2
Active

TE Connectivity AMP Connectors VAL-U-LOK, 1-1586039-2, Board to Cable/Wire, Header, Through Hole, 12 positions, 2 rows, 0.165" (4.20mm) pitch, 9A, 600VAC, Tin contacts, Shrouded - 4 Wall, Locking Ramp, Board Lock, -40°C ~ 105°C, UL94 V-2, Bulk.

$0.9600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesVAL-U-LOK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-1586039-2 key specifications
ParameterValue
SeriesVAL-U-LOK
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating600VAC
Current rating9A
Operating temperature-40°C ~ 105°C
Contact materialBrass Alloy
Insulation colorNatural
Insulation height0.504\" (12.80mm)
Insulation materialPolyamide (PA66), Nylon 6/6

All specifications

1-1586039-2 additional specifications
ParameterValue
Material flammability ratingUL94 V-2
StyleBoard to Cable/Wire
PackageBulk
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial, Lighting
Contact shapeSquare
Rows2
Pitch0.165\" (4.20mm)
Positions12
Row spacing - mating0.165\" (4.20mm)
Contact finish - postTin
Contact length - post0.138\" (3.50mm)
Contact finish - matingTin
Contact finish thickness - post80.0µin (2.03µm)
Contact finish thickness - mating80.0µin (2.03µm)

Product details

Board-mount header with locking ramp for wire-to-board duty

It carries 12 positions in two rows on a 4.20mm pitch, rated 9A per contact at 600VAC.

Current rating and thermal limits for harness sizing

Rated 9A per contact at 600VAC, the 1-1586039-2 handles moderate power distribution. For higher mating cycle counts, consider the gold-plated variants in the VAL-U-LOK family.

Sourcing and compliance for BOM planning

No official second-source cross-reference is on record, but the VAL-U-LOK series includes functionally similar headers such as 4-1775099-7 (different position count or plating).

This header mates with VAL-U-LOK receptacle housings (e.g., 1-1586040-2 or 1-1586041-2) using the matching crimp terminals. Termination is solder to through-hole posts (0.138" / 3.50mm post length). The 4.20mm row spacing matches the pitch, simplifying PCB layout for dual-row designs.

Frequently asked questions

Is 1-1586039-2 RoHS compliant?

Yes, the 1-1586039-2 is ROHS3 compliant.
