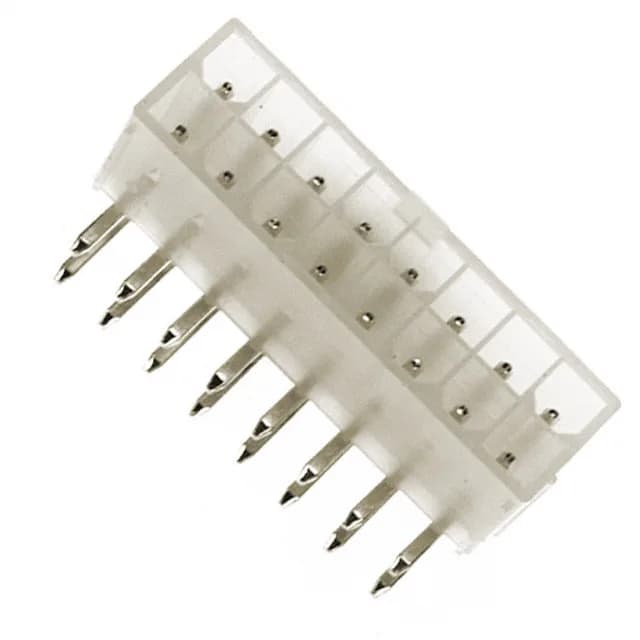

TE Connectivity VAL-U-LOK dual-row header, 1-1586041-6, 16 positions, 4.20mm pitch, 9A per circuit at 600VAC, tin-plated brass contacts, right-angle through-hole mount, 4-wall shroud with locking ramp, nylon housing, -40 to 105°C, ROHS3 compliant.
| Parameter | Value |
|---|---|
| Series | VAL-U-LOK |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 600VAC |
| Current rating | 9A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass Alloy |
| Insulation color | Natural |
| Insulation height | 0.402\" (10.20mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-2 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial, Lighting |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.165\" (4.20mm) |
| Positions | 16 |
| Row spacing - mating | 0.165\" (4.20mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.142\" (3.60mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 80.0µin (2.03µm) |
| Contact finish thickness - mating | 80.0µin (2.03µm) |
The 1-1586041-6: It uses a 4.20mm pitch, with a 4-wall shroud and a locking ramp that keeps the mating connector seated under vibration.
The locking ramp engages with the mating receptacle's latch, providing a positive lock that resists pull-off from cable strain or machine vibration.
The 1-1586041-6 header mates with a VAL-U-LOK receptacle housing (e.g., 1-1586036-6) loaded with the appropriate crimp terminals. The locking ramp on the header engages with the latch on the receptacle.
Yes, it is ROHS3 compliant.
