TE Connectivity AMP Connectors 1-1586043-2 — Pin Headers

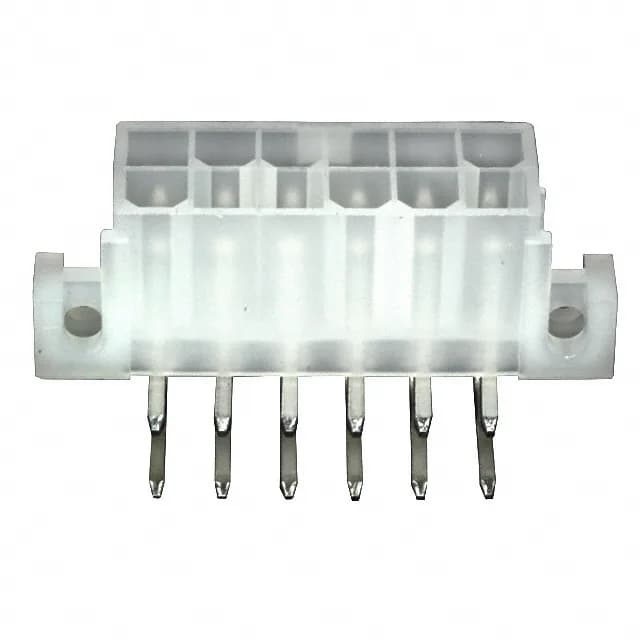

1-1586043-2 TE Connectivity VAL-U-LOK Header 12 Pos 4.2mm

MPN1-1586043-2
Active

TE Connectivity VAL-U-LOK series, 1-1586043-2, 12-position dual-row right-angle through-hole header, 4.20mm pitch, tin-plated brass contacts rated 9A per circuit at 600VAC, shrouded 4-wall with locking ramp and mounting flange.

$1.3300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-1586043-2 datasheet (PDF)
RoHSROHS3 Compliant
SeriesVAL-U-LOK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

1-1586043-2 key specifications
ParameterValue
SeriesVAL-U-LOK
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating600VAC
Current rating9A
Operating temperature-40°C ~ 105°C
Contact materialBrass Alloy
Insulation colorNatural
Insulation height0.386\" (9.80mm)
Insulation materialPolyamide (PA), Nylon

All specifications

1-1586043-2 additional specifications
ParameterValue
Material flammability ratingUL94 V-2
StyleBoard to Cable/Wire
PackageBulk
FeaturesMounting Flange
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial, Lighting
Contact shapeSquare
Rows2
Pitch0.165\" (4.20mm)
Positions12
Row spacing - mating0.165\" (4.20mm)
Contact finish - postTin
Contact length - post0.142\" (3.60mm)
Contact finish - matingTin
Contact finish thickness - post80.0µin (2.03µm)
Contact finish thickness - mating80.0µin (2.03µm)

Product details

Right-angle header for wire-to-board in industrial lighting

The 1-1586043-2: This is a 12-position, dual-row right-angle through-hole header from TE's VAL-U-LOK series, pitched at 4.20mm. Rated 9A per circuit at 600VAC, it handles moderate power for LED drivers, control panels, and similar loads. The tin-plated brass contacts are good for standard-duty mating cycles — not for frequent field disconnect, but fine for install-and-forget harnesses.

Locking ramp and 4-wall shrouding keep the mate secure

Active production, sourced per BOM quantity

RoHS3 compliant, UL94 V-2 rated nylon housing. The base part number is 1586043, so any series-specific documentation ties back to that root.

Frequently asked questions

What is the mating receptacle for 1-1586043-2?

It mates with a VAL-U-LOK receptacle housing that accepts crimp terminals — look for the matching 12-position, 4.20mm pitch dual-row receptacle from the same series. The locking ramp on the header engages the latch on the receptacle side.

Does 1-1586043-2 have a locking ramp for vibration resistance?

Yes, the fastening type is locking ramp, which provides positive retention against vibration-induced disconnect.
