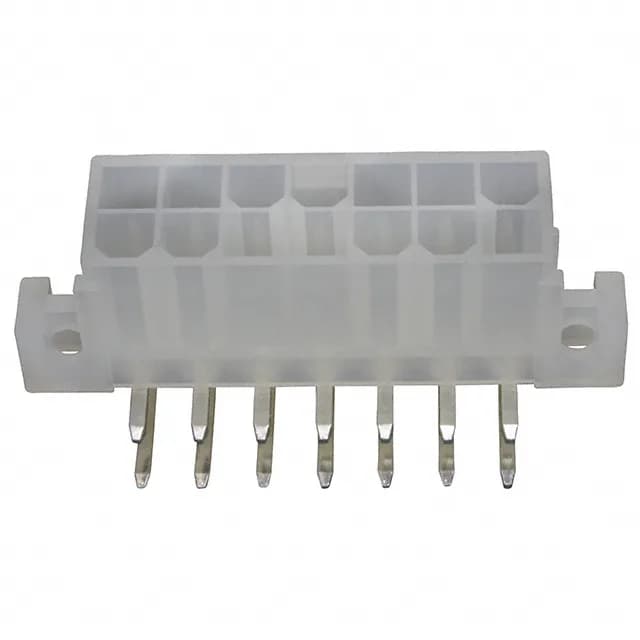

TE Connectivity VAL-U-LOK, 1-1586043-4, Board to Cable/Wire, Header, Male Pin, 14 Positions, 2 Rows, 4.20mm Pitch, Through Hole, Right Angle, Solder, Tin Mating Finish, 9A, 600VAC, Locking Ramp, Bulk
| Parameter | Value |
|---|---|
| Series | VAL-U-LOK |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 600VAC |
| Current rating | 9A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass Alloy |
| Insulation color | Natural |
| Insulation height | 0.386\" (9.80mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-2 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial, Lighting |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.165\" (4.20mm) |
| Positions | 14 |
| Row spacing - mating | 0.165\" (4.20mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.142\" (3.60mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 80.0µin (2.03µm) |
| Contact finish thickness - mating | 80.0µin (2.03µm) |
The 1-1586043-4: A locking ramp on the header engages with the matching VAL-U-LOK receptacle housing, providing audible and tactile feedback during mating. The 4-wall shrouding protects the male pins from damage and misalignment during blind-mate assembly. The natural polyamide (PA) insulation carries a UL94 V-2 flammability rating, suitable for equipment inside an enclosure where flame retardance is required.
This header mates with a VAL-U-LOK receptacle housing that accepts the matching crimp terminals. The locking ramp on the header engages with the receptacle latch for vibration-resistant retention.
Yes, 1-1586043-4 is ROHS3 compliant.
