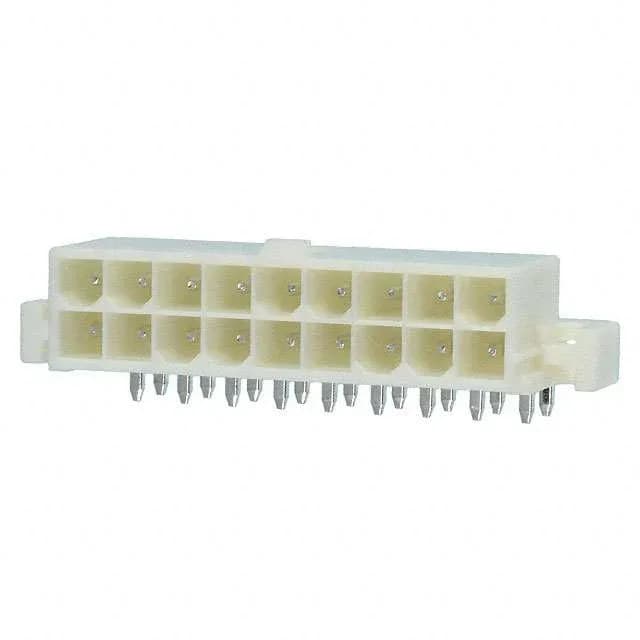

Right-angle header for wire-to-board power distribution
Rated 9 A per circuit at 600VAC, with tin-plated brass contacts and a locking ramp that keeps the mating receptacle secure under vibration.
Pitch, position count, and locking ramp
At 18 positions in two rows with 4.20 mm row spacing, this header carries more circuits than the 10-position single-row variants in the VAL-U-LOK family, while keeping the same 4.20 mm pitch and locking ramp interface. The shrouded 4-wall design and mounting flange add mechanical stability during mating and reduce the risk of pin damage during handling.
