TE Connectivity AMP Connectors 1-1586489-0 — Pin Headers, Sockets & Housings

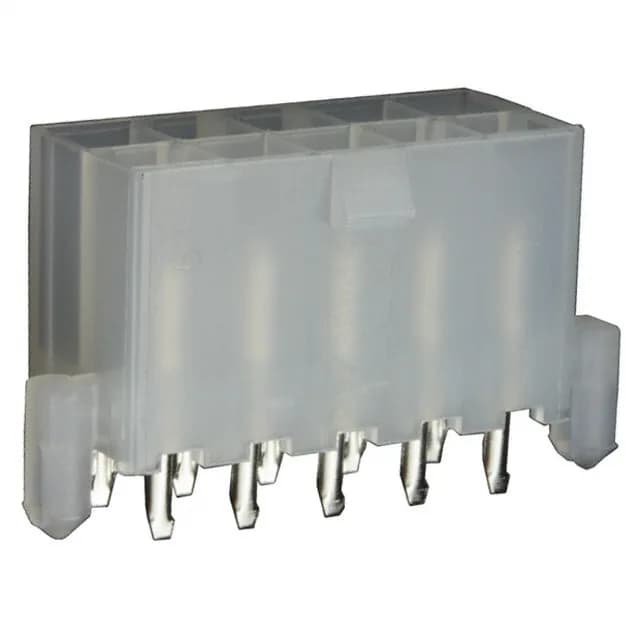

1-1586489-0 TE AMP-DUAC Header, 10 Pos, 4.20mm, Obsolete

MPN1-1586489-0
Obsolete

TE Connectivity AMP-DUAC header, order code 1-1586489-0, 10 positions, dual row, 0.165" (4.20 mm) pitch, 600 VAC, tin-plated mating contacts, through-hole, solder termination, locking ramp.

$2.8600Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

1-1586489-0 key specifications
ParameterValue
SeriesAMP-DUAC
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating600VAC
Operating temperature-55°C~105°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.504\" (12.80mm)
Insulation materialPolyamide (PA), Nylon
Material flammability ratingUL94 V-2

All specifications

1-1586489-0 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageBulk
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.165\" (4.20mm)
Positions10
Row spacing - mating0.165\" (4.20mm)
Contact finish - postTin
Contact length - post0.138\" (3.50mm)
Contact finish - matingTin
Contact finish thickness - mating118.1µin (3.00µm)

Product details

10-circuit shrouded header in the AMP-DUAC series

The 1-1586489-0 is the 10-circuit member of TE Connectivity's AMP-DUAC shrouded header line, a board-to-board or cable interconnect with a locking ramp and board locks for retention. It carries tin-plated mating contacts rated 600 VAC and mounts through-hole with solder termination.

Obsolete — no direct pin-compatible replacement

No official successor or pin-compatible alternative is listed. Sourcing is limited to existing stock or surplus channels.
