TE Connectivity AMP Connectors 1-160304-0 — Quick-Disconnect Terminals

1-160304-0 TE Faston QC Receptacle 0.250" Tab 13.5-17 AWG

MPN1-160304-0
Active

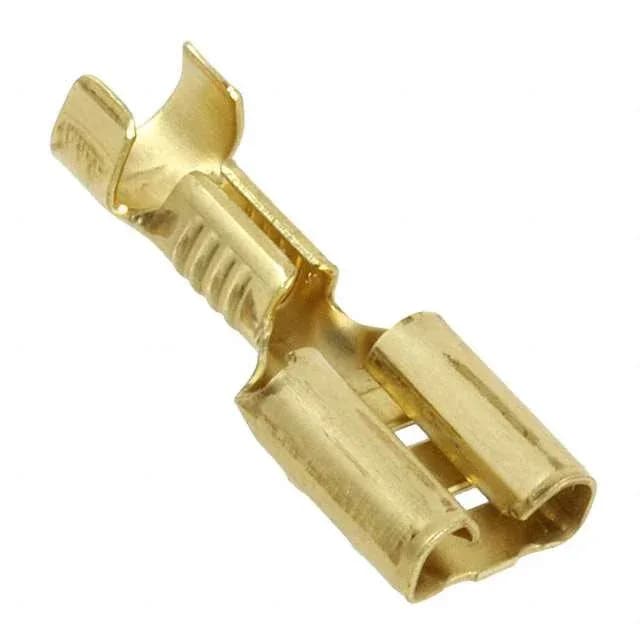

TE Connectivity AMP Faston quick-disconnect receptacle, order code 1-160304-0, female, 0.250" (6.35mm) tab width, 13.5-17 AWG, non-insulated, brass, crimp termination, free hanging (in-line).

$0.3200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFaston
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-160304-0 specifications
ParameterValue
SeriesFaston
MountingFree Hanging (In-Line)
Terminal typeStandard
Wire gauge13.5-17 AWG
Tab width0.250\" (6.35mm)
Contact materialBrass
GenderFemale
PackageBulk
InsulationNon-Insulated
Tab length0.303\" (7.70mm)
TerminationCrimp
Tab thickness0.032\" (0.81mm)
Length - overall0.795\" (20.19mm)
Insulation diameter0.118\" ~ 0.169\" (3.00mm ~ 4.29mm)

Product details

Faston 0.250" non-insulated receptacle

The 1-160304-0 is a non-insulated female quick-disconnect receptacle in TE's Faston series, accepting 0.250" (6.35mm) male tabs.

Same-tab-width peers for wire-range comparison

The 1-160304-0's 0.250" tab width and 0.032" (0.81mm) tab thickness are shared with the Utilux-series 1-1627194-4 (15-18 AWG, 0.780" length) and 1-1659250-0 (17-20 AWG, 0.780" length). The 1-160304-0 accepts a heavier wire range (13.5-17 AWG) and is 0.795" overall length — 0.015" longer than the Utilux parts — but shares the same free-hanging crimp format and brass contact material.
