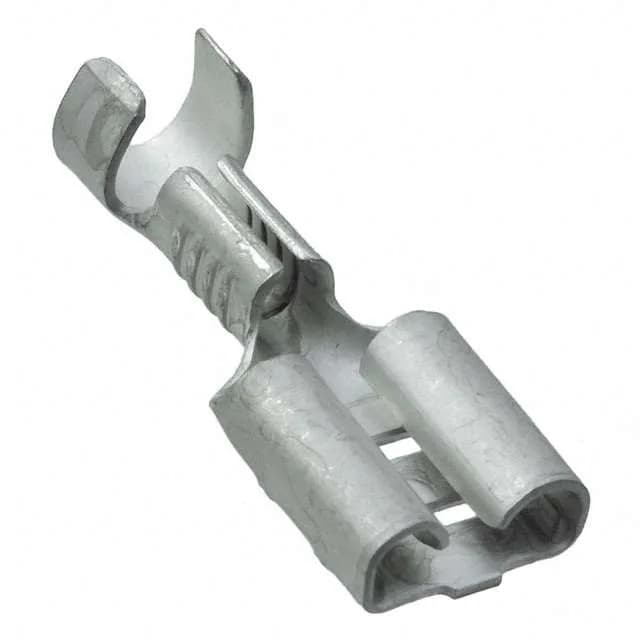

TE Connectivity Faston quick-connect receptacle, order code 1-160304-2, female, 0.250" (6.35mm) tab width, 13.5-17 AWG, non-insulated, tin-plated brass, crimp termination, free hanging (in-line).
| Parameter | Value |
|---|---|
| Series | Faston |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 13.5-17 AWG |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Bulk |
| Insulation | Non-Insulated |
| Tab length | 0.303\" (7.70mm) |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Tin |
| Length - overall | 0.795\" (20.19mm) |
| Insulation diameter | 0.118\" ~ 0.169\" (3.00mm ~ 4.29mm) |
The 1-160304-2 is a female quick-connect receptacle from the TE Connectivity Faston series, accepting 13.5-17 AWG wire with a 0.250" (6.35mm) tab width. The non-insulated, tin-plated brass contact crimps onto the stripped wire and mates with any standard 0.032" (0.81mm) thick tab of the same width.
