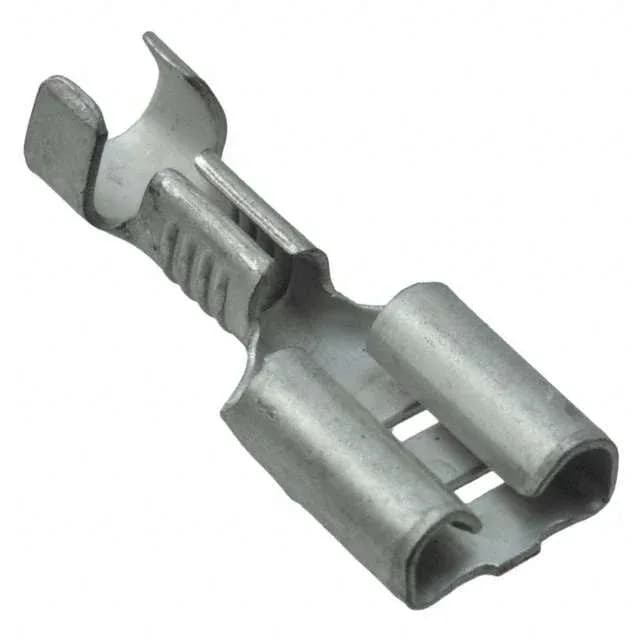

TE Connectivity AMP Connectors 1-160304-8 — Quick-Disconnect Terminals

1-160304-8 Faston QC Receptacle 13.5-17 AWG 0.250"

MPN1-160304-8
Active

TE Connectivity Faston quick-connect receptacle, order code 1-160304-8, female, 0.250" (6.35mm) tab width, 13.5-17 AWG, tin-plated phosphor bronze contact, non-insulated, free hanging, crimp termination.

$0.4400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFaston
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-160304-8 specifications
ParameterValue
SeriesFaston
MountingFree Hanging (In-Line)
Terminal typeStandard
Wire gauge13.5-17 AWG
Tab width0.250\" (6.35mm)
Contact materialPhosphor Bronze
GenderFemale
PackageBulk
InsulationNon-Insulated
Tab length0.303\" (7.70mm)
TerminationCrimp
Tab thickness0.032\" (0.81mm)
Contact finishTin
Length - overall0.795\" (20.19mm)
Insulation diameter0.118\" ~ 0.169\" (3.00mm ~ 4.29mm)

Product details

0.250" tab, 13.5-17 AWG crimp receptacle

The 1-160304-8: The tin-plated phosphor bronze contact is rated for crimp termination in free-hanging applications; insulation diameter range is 0.118" to 0.169" (3.00mm to 4.29mm).

Brass vs phosphor bronze contact material

Within the same 0.250" tab-width Faston series, the 1-160304-8 uses phosphor bronze contacts while the 1-160304-0 uses brass — both share the same wire gauge range, tab thickness, and overall length, so the choice turns on the contact material's spring properties for the application.

Frequently asked questions

What is the closest functional peer to 1-160304-8?

The 1-160304-0 shares the same tab width, wire gauge range, and free-hanging crimp design but uses a brass contact instead of phosphor bronze.
