TE Connectivity AMP Connectors 1-160759-1 — Quick-Disconnect Terminals

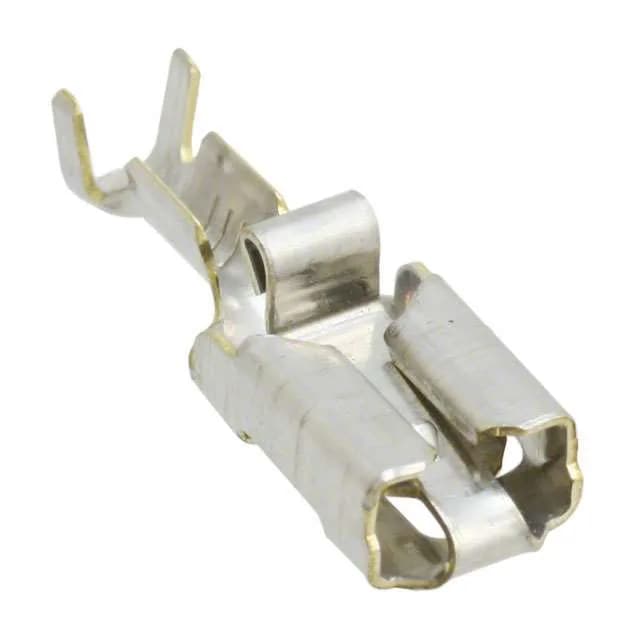

1-160759-1 TE Mark I QC Receptacle 0.250" Tab

MPN1-160759-1
Active

TE Connectivity AMP Connectors Mark I quick-disconnect receptacle, order code 1-160759-1, female, 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, 16-20 AWG, tin-plated brass, crimp termination, free hanging, non-insulated.

$0.2400Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-160759-1 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMark I
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-160759-1 specifications
ParameterValue
SeriesMark I
MountingFree Hanging (In-Line)
Terminal typeStandard
Wire gauge16-20 AWG
Tab width0.250\" (6.35mm)
Contact materialBrass
GenderFemale
PackageTape & Reel (TR) Cut Tape (CT)
InsulationNon-Insulated
TerminationCrimp
Tab thickness0.032\" (0.81mm)
Contact finishTin
Length - overall0.878\" (22.30mm)
Insulation diameter0.091\" ~ 0.130\" (2.31mm ~ 3.30mm)

Product details

Quick-disconnect receptacle, 0.250" tab

The 1-160759-1 is a non-insulated female quick-disconnect receptacle in TE's Mark I series, accepting 0.250" (6.35mm) male tabs of 0.032" (0.81mm) thickness. Crimp termination suits 16-20 AWG wire with an insulation diameter range of 0.091" to 0.130" (2.31mm to 3.30mm). The tin-plated brass contact delivers a standard-duty electrical interface for free-hanging inline connections.

Tab width and thickness match

The 1-160759-1 mates with 0.250" wide tabs — the same width as the Utilux-series 1-1627194-4, which also uses a 0.032" tab thickness. The Utilux 1-1659250-0 accepts a slightly narrower 0.248" (6.30mm) tab and a 0.031" (0.79mm) thickness, a 0.002" difference on each dimension that may affect retention in some tab geometries.

Frequently asked questions

Will 1-160759-1 drop into a panel specified around 1-1659250-0 without rewiring?

The 1-160759-1 uses a 0.250" (6.35mm) tab width and 0.032" (0.81mm) tab thickness, while the 1-1659250-0 uses a 0.248" (6.30mm) tab width and 0.031" (0.79mm) tab thickness. The 0.002" width and 0.001" thickness differences may affect retention in tab receptacles designed to the tighter Utilux dimensions. The wire gauge range also differs — 16-20 AWG for the 1-160759-1 versus 17-20 AWG for the 1-1659250-0 — so the crimp barrel may not suit the same wire sizes.
