TE Connectivity AMP Connectors 1-160773-0 — Quick-Disconnect Terminals

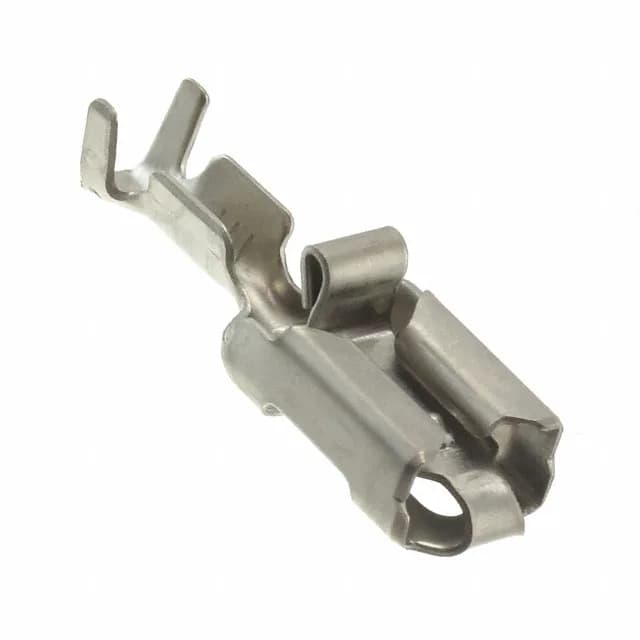

1-160773-0 TE Connectivity Mark I Quick-Disconnect Terminal

MPN1-160773-0
Active

TE Connectivity AMP Connectors Mark I female quick-disconnect terminal, order code 1-160773-0, 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, 15.5-20 AWG, nickel-plated phosphor bronze, crimp termination, free hanging, non-insulated, bulk.

$0.5600Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-160773-0 datasheet (PDF)
RoHSRoHS Compliant
SeriesMark I
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-160773-0 specifications
ParameterValue
SeriesMark I
MountingFree Hanging (In-Line)
Terminal typeStandard
Wire gauge15.5-20 AWG
Tab width0.250\" (6.35mm)
Contact materialPhosphor Bronze
GenderFemale
PackageBulk
InsulationNon-Insulated
TerminationCrimp
Tab thickness0.032\" (0.81mm)
Contact finishNickel
Length - overall0.902\" (22.91mm)
Insulation diameter0.091\" ~ 0.130\" (2.31mm ~ 3.30mm)

Product details

Mark I female quick-disconnect terminal — 0.250" tab, nickel-plated

The 1-160773-0: The phosphor bronze contact carries a nickel finish, and the non-insulated barrel accommodates insulation diameters from 0.091" to 0.130" (2.31mm to 3.30mm).

Nickel vs tin contact finish — selection within the series

The 1-160773-0 uses a nickel-plated contact, while the functionally identical 160773-7 and 160773-4 in the same Mark I series use tin-plated contacts — the tab width, wire range, and overall length are shared.

Frequently asked questions

What is the difference between 1-160773-0 and 160773-7?

Both are 0.250" tab-width female Mark I terminals with the same wire range and dimensions; the 1-160773-0 has a nickel contact finish, while the 160773-7 uses tin plating.

What compliance documentation is available for 1-160773-0?

The terminal is RoHS compliant per TE Connectivity AMP Connectors.
