What This Battery Connector Does in the Assembly
It sits in the TE 1612962 series of 2.00 mm pitch interconnect components, purpose-built for battery pack connections in portable electronics, handheld instruments, and IoT devices where a compact, reliable power tap is needed. Rated 7 A per contact at 30 V, this plug carries the main DC rail current for a small battery — think a single-cell Li-ion pack or a multi-cell series string where each blade handles one power path. Gold plating on the contacts (11.8 µin) resists corrosion in the battery compartment environment, where humidity and condensation can be a problem over the life of a portable device. The push-pull fastening type means it mates and unmates without a locking latch — fine for internal battery connections that see only occasional service cycles.
Mounting and Termination — Right-Angle SMT at the Board Edge

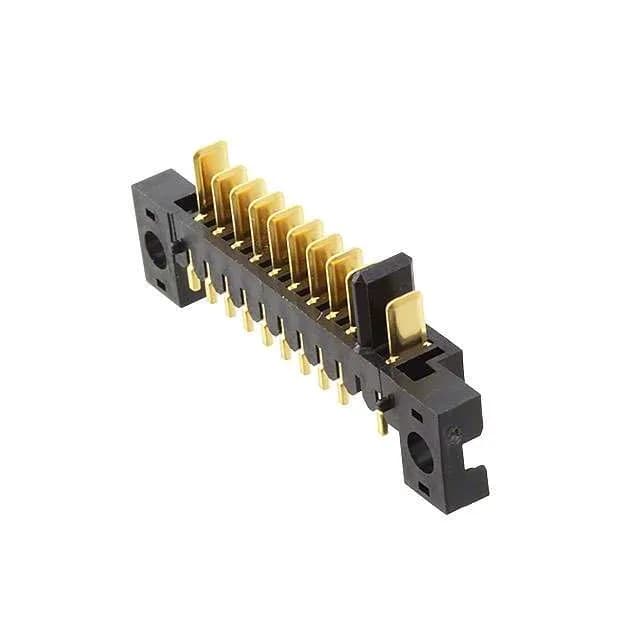

The mounting type is board edge, surface mount, right angle — which means the connector overhangs the PCB edge so the battery cable plugs in from the side, not from above. The insulation is polyamide (PA6T, Nylon 6T), a high-temperature nylon that withstands lead-free reflow profiles without distortion. Operating temperature range is -30°C to 70°C, which covers indoor consumer electronics and most industrial portable gear but not automotive under-hood or extended outdoor exposure.
What It Mates With — Finding the Receptacle Half
This plug mates with a TE battery receptacle housing in the same 1612962 series, 10-position, 2.00 mm pitch, female socket configuration. For field replacement, the plug unmates cleanly without tools. No official cross-reference or equivalent part from another manufacturer exists for this TE order code. The base product number 1612962 identifies the series; the suffix -3 denotes the specific variant (10-position, right-angle, SMT, gold plating).
