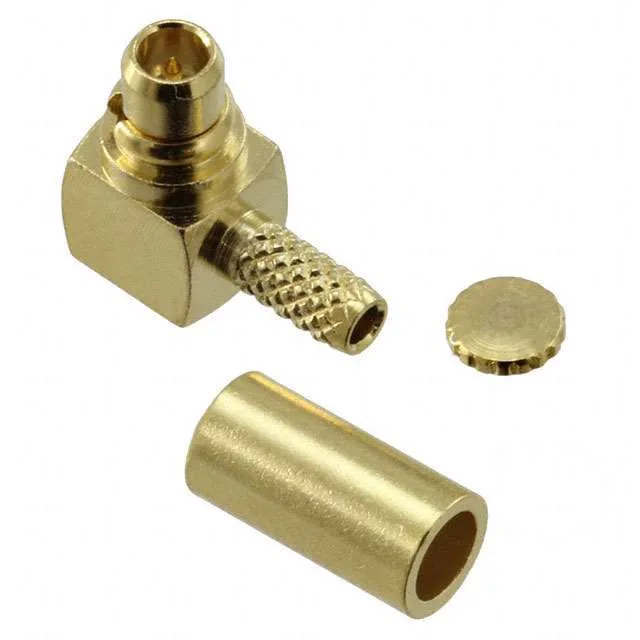

1-1634003-0 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Greenpar MMCX Plug 1-1634003-0, 50 Ohm, 6 GHz

MPN1-1634003-0
Obsolete

TE Connectivity Greenpar MMCX plug, male pin, 50 Ohms, 6 GHz, snap-on, free-hanging right-angle, solder/crimp, gold body, for RG-178/196A, 500 mating cycles, 170 V.

$4.3900Ref. price · indicative, final on quote
1-1634003-0 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

1-1634003-0 Technical Specifications
ParameterValue
SeriesGreenpar
Mounting typeFree Hanging (In-Line), Right Angle
Connector typePlug, Male Pin
Fastening typeSnap-On
Voltage rating170 V
Frequency - max6 GHz
Cable groupRG-178, 196A
Operating temperature-55°C ~ 155°C
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Includes3 pcs - 1 Connector, 1 End Cap, 1 Ferrule
Impedance50 Ohms
Body finishGold
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

MMCX Plug for RG-178/196A — 50 Ohm, 6 GHz

It comes as a three-piece assembly: the connector body, an end cap, and a ferrule. The right-angle, free-hanging orientation suits tight cable routing in test equipment, portable radios, or compact RF modules. Gold plating on the body, housing, and center contact provides corrosion resistance and stable contact resistance over the rated 500 mating cycles.

Cable and Termination

This plug is built for RG-178 and RG-196A coaxial cables. The center contact is soldered; the shield is crimped via the included ferrule. The dielectric is PTFE, giving stable impedance across the -55°C to 155°C operating range.

Frequently asked questions

Is 1-1634003-0 still available to buy?

This connector is obsolete per TE Connectivity, but it can be sourced through independent distribution against an RFQ. Submit a request with your quantity for a current availability and pricing quote.

What is the replacement for TE Connectivity 1-1634003-0?

TE Connectivity has not published an official replacement for 1-1634003-0. For a functionally similar MMCX plug, check the Greenpar series for active male-pin, 50 Ohm, right-angle options that accept RG-178/196A cable.

What cable does 1-1634003-0 fit?

The 1-1634003-0 is designed for RG-178 and RG-196A coaxial cables. The center contact solders to the signal conductor; the shield is crimped with the included ferrule.

What is the impedance of 1-1634003-0?

The impedance is 50 Ohms, the standard for RF and telecommunications systems. The PTFE dielectric and gold-plated center contact maintain this impedance up to 6 GHz.
