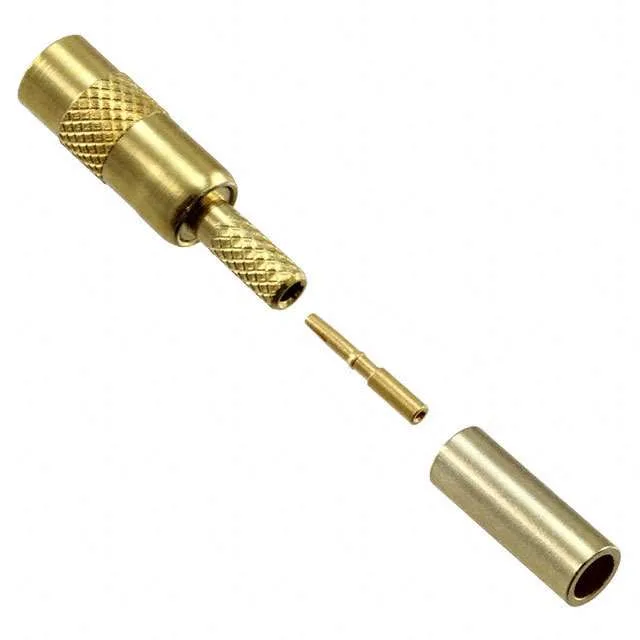

MMCX 50 Ohm Jack for RG-178 and 196A Cable
It terminates RG-178 and 196A cable groups — the shield crimps, the centre conductor solders. Rated to 6 GHz and 170 V, it uses a PTFE dielectric for stable impedance through the band.
There is no listed direct replacement or cross-reference on record. No stock-holding claim; quoted per request.
Field Fit and Cable Compatibility
The snap-on coupling is quick to mate and unmate on site — no tool needed beyond the crimp tool for the shield and a soldering iron for the centre pin. The 500-cycle rating means it handles repeated test connections or field swaps before the gold plating wears through. The PTFE dielectric holds up across the full -55°C to 155°C operating range, so it stays in spec in a hot enclosure or cold outdoor cabinet. The cable group is RG-178 and 196A — both 50 Ohm coax with a solid or stranded centre conductor that fits the solder cup.
