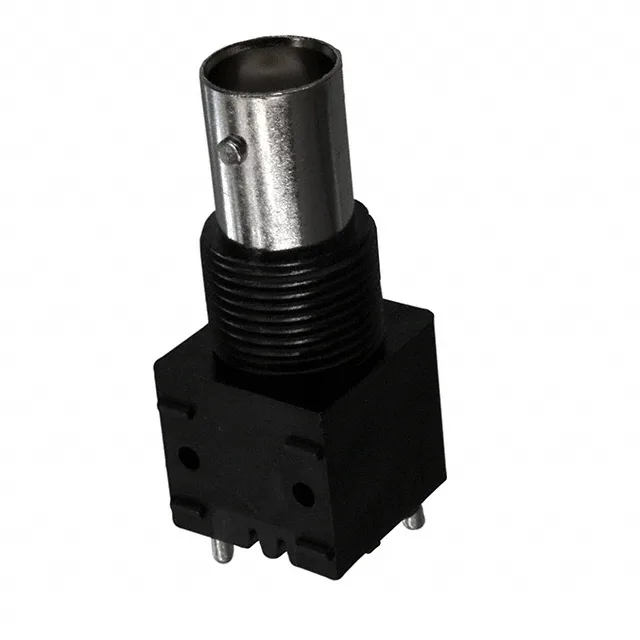

TE Connectivity 1-1634505-0 BNC Jack, 50 Ohm, 4 GHz

MPN1-1634505-0
Obsolete

TE Connectivity ZDC/Greenpar series BNC jack, female socket, 50 Ohms, 4 GHz, 500 V, panel mount with bulkhead front-side nut, through-hole solder termination, nickel body, gold center contact.

$4.5000Ref. price · indicative, final on quote
1-1634505-0 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

1-1634505-0 Technical Specifications
ParameterValue
SeriesZDC, Greenpar
Mounting typePanel Mount, Through Hole
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Mounting featureBulkhead - Front Side Nut
Operating temperature-55°C ~ 85°C
Body materialZinc Alloy
Housing colorBlack, Silver
Dielectric materialPolyethylene (PE)
Center contact materialBrass
PackageBulk
FeaturesBoard Guide, Isolated
Impedance50 Ohms
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

The 1-1634505-0: It mounts through a panel bulkhead using a front-side nut and terminates via through-hole solder lugs to the PCB. Rated for 4 GHz maximum frequency and 500 V, this jack suits RF signal paths up to low microwave bands — think instrumentation, broadcast gear, or telecom backhaul where the cable run is short and the signal stays below that ceiling.

Sourcing This Obsolete Part

The 1-1634505-0 is listed as obsolete.

The through-hole solder termination means the center contact and shield legs go into plated holes on the PCB and are hand-soldered or wave-soldered. The front-side bulkhead nut secures the connector body to the panel from the outside — the jack body sits on the inside of the chassis wall. The polyethylene dielectric inside maintains the 50 Ohm characteristic impedance through the transition.
