This header mates with AMP-Latch receptacles (typically part numbers starting with 1-165862 or 1-165861 series) that accept 0.100" pitch IDC ribbon cable. The push-pull fastening type and keying slot prevent mis-mating.

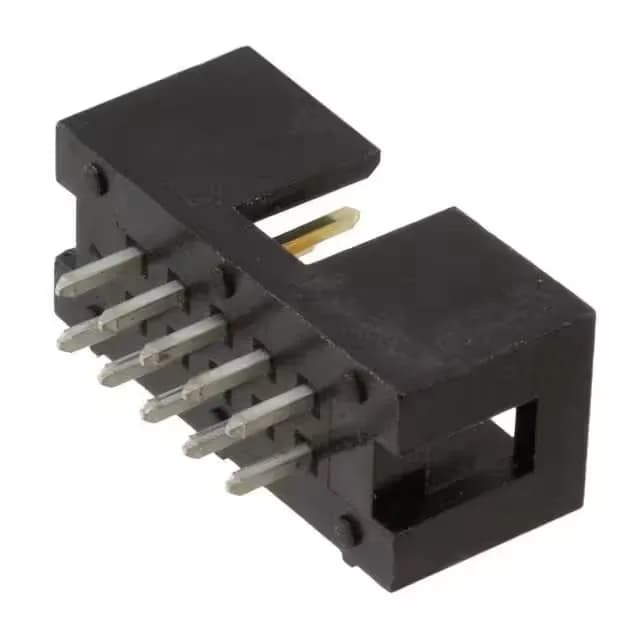

1-1634688-0 TE AMP-Latch Header, 10-Pin, 0.100" Pitch
MPN1-1634688-0
Obsolete
TE Connectivity AMP-Latch, Board to Cable/Wire, Header, 10 Positions, 0.100" (2.54mm) Pitch, Through Hole, Solder, Gold Mating Contact, Black Insulation, UL94 V-0
$0.3800Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -40°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.343\" (8.71mm) |
| Insulation material | Polyamide (PA6T), Nylon 6T |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.228\" (5.80mm) |
| Contact finish thickness - post | 80.0µin (2.03µm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
Product details
Frequently asked questions
How can I order 1-1634688-0 or check stock?
1-1634688-0 is obsolete and not stocked on the shelf. Submit an RFQ through this page; we source it through independent distribution channels.
What is the replacement for 1-1634688-0?
TE Connectivity has not recorded an official replacement for this obsolete part number.
What is the pitch of 1-1634688-0?
The mating pitch is 0.100" (2.54mm) between contacts, and the row spacing is also 0.100" (2.54mm). This is the standard AMP-Latch spacing for IDC ribbon cable.
