TE Connectivity AMP Connectors 1-1634689-0 — Pin Headers, Sockets & Housings

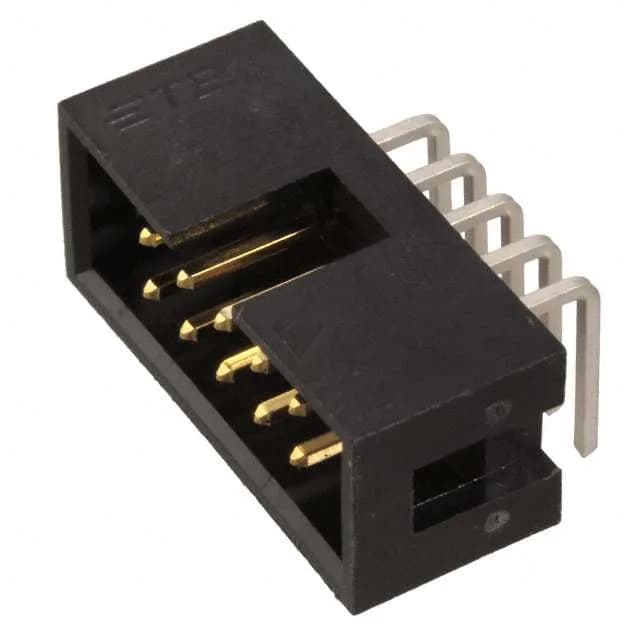

TE AMP-Latch 1-1634689-0 Header, 10 Pos 2.54mm

MPN1-1634689-0
Obsolete

TE Connectivity AMP Connectors AMP-Latch header, order code 1-1634689-0, 10 positions, dual row, 0.100" (2.54mm) pitch, 3 A, gold-plated mating contacts, through-hole right-angle, solder termination.

$2.0300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-1634689-0 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026

Specifications

1-1634689-0 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typePush-Pull
Current rating3A
Operating temperature-40°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.335\" (8.51mm)
Insulation materialPolyamide (PA6T), Nylon 6T
Material flammability ratingUL94 V-0

All specifications

1-1634689-0 additional specifications
ParameterValue
StyleBoard to Cable/Wire
PackageTray
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions10
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.126\" (3.20mm)
Contact finish - matingGold
Contact length - mating0.228\" (5.80mm)
Contact finish thickness - post80.0µin (2.03µm)
Contact finish thickness - mating10.0µin (0.25µm)

Product details

2.54 mm pitch, 10-circuit right-angle header

The 1-1634689-0 is the 10-circuit member of TE's AMP-Latch shrouded header line, mating with standard 0.100" pitch IDC sockets via a push-pull fastening system. Gold-plated mating contacts rated 3 A per circuit, through-hole right-angle mounting with tin-plated posts, 0.335" insulation height, UL94 V-0 PA6T housing.

Obsolete — no direct replacement on record

No official successor or pin-compatible alternative is listed in the AMP-Latch series — any replacement requires a board layout review.
