84-Position Differential Pair Array at 0.80mm Pitch — the Tightest MICTOR Mezzanine

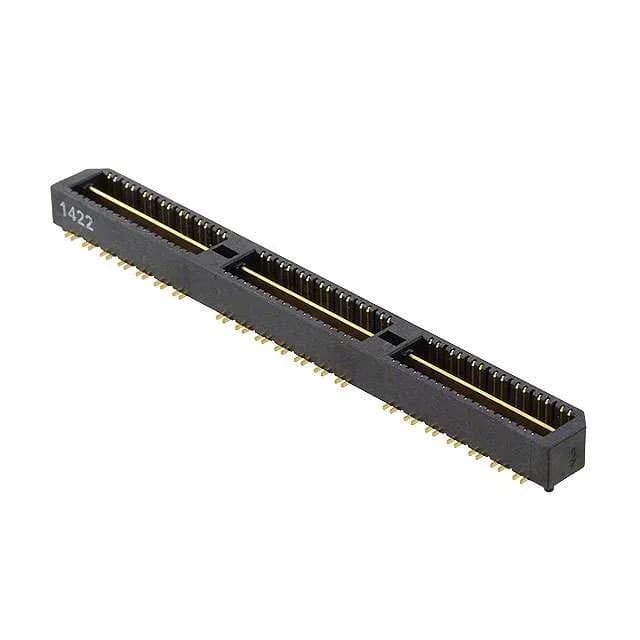

The TE Connectivity MICTOR 1-1658013-3 is an 84-position differential pair array plug, male contacts, designed for high-speed board-to-board mezzanine stacking. At a 0.031" (0.80mm) pitch, it packs 84 differential signal pairs into a compact footprint — the tightest pitch in the MICTOR family, which forces the board designer to plan for HDI or microvia fanout from the inner rows. The connector sits 0.168" (4.27mm) above the board, setting the mated stack height for the pair of parallel PCBs. Gold-plated contacts (10.0µin) on the mating interface handle moderate-cycle interconnects in controlled environments like servers, switches, and test equipment where signal integrity matters more than repeated reconnection. The built-in board guide aligns the plug during SMT placement, preventing tombstoning or skewed insertion that would damage the fine-pitch contacts. The ground bus (plane) provides a low-inductance return path — critical for maintaining differential impedance and minimizing crosstalk in high-data-rate serial links. This connector is not a general-purpose header; it is a signal-integrity engineered component for differential signaling up to multi-gigabit rates.
0.80mm vs 1.00mm Pitch — Why the 1-1658013-3 Demands a Tighter Board Layout
The sibling 1-120532-2 carries 84 positions on a 0.039" (1.00mm) pitch with a 0.250" (6.35mm) mated height and 50.0µin gold contacts. The 1-1658013-3 at 0.031" (0.80mm) pitch saves 20% on board real estate per row but requires finer trace geometry and tighter registration during assembly. The 4.27mm stack height of the 1-1658013-3 is 2.08mm lower than the 1-120532-2 — a meaningful difference when the enclosure has a tight z-height budget.
