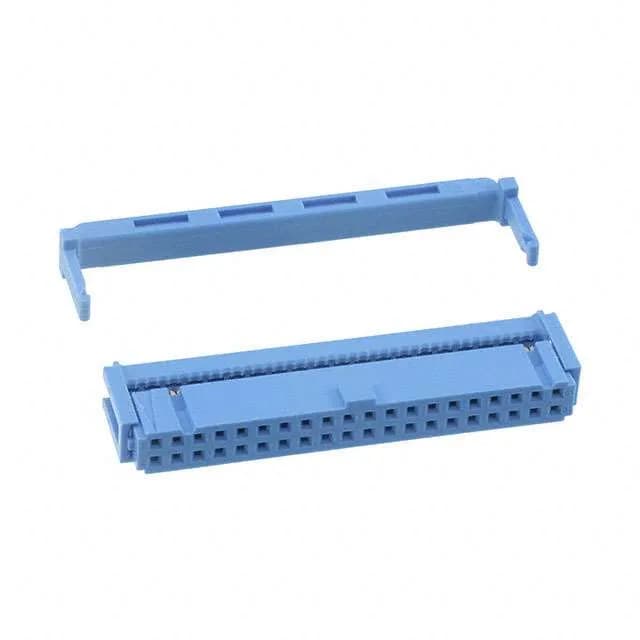

TE Connectivity 622 series, 40-position IDC receptacle, 0.100" (2.54mm) pitch, dual-row, gold 30.0µin contacts, 26-28 AWG ribbon cable, free-hanging, bulk.
| Parameter | Value |
|---|---|
| Series | 622 |
| Wire type | Ribbon Cable |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Wire gauge | 26-28 AWG, Stranded or Solid |
| Cable termination | IDC |
| Color | Blue |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Features | Feed Through, Polarizing Key, Strain Relief |
| Row spacing | 0.100\" (2.54mm) |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 40 |
| Contact finish thickness | 30.0µin (0.76µm) |
Termination is IDC (Insulation Displacement Connection), which eliminates individual wire stripping and crimping — the cable is pressed onto the bifurcated contacts in one operation. The wire gauge range of 26-28 AWG covers the most common ribbon cable sizes for internal signal harnesses. A feed-through design allows the cable to pass through the connector body, and the integrated strain relief protects the termination point from flex damage at the cable exit.
It is ROHS3 compliant.
It accepts 26-28 AWG stranded or solid wire, terminated via IDC to ribbon cable.
