Thin flash gold would wear through faster under repeated engagement; at this thickness the contact resistance stays stable across the connector's service life. The IDC termination is a production-speed process: the ribbon cable is pressed onto the forked contacts in one stroke, displacing the insulation and making gas-tight connections on all 64 positions simultaneously. No individual wire stripping or crimping. The feed-through feature in the housing lets the cable exit straight through the back, keeping the assembly profile low in a card cage or enclosure.

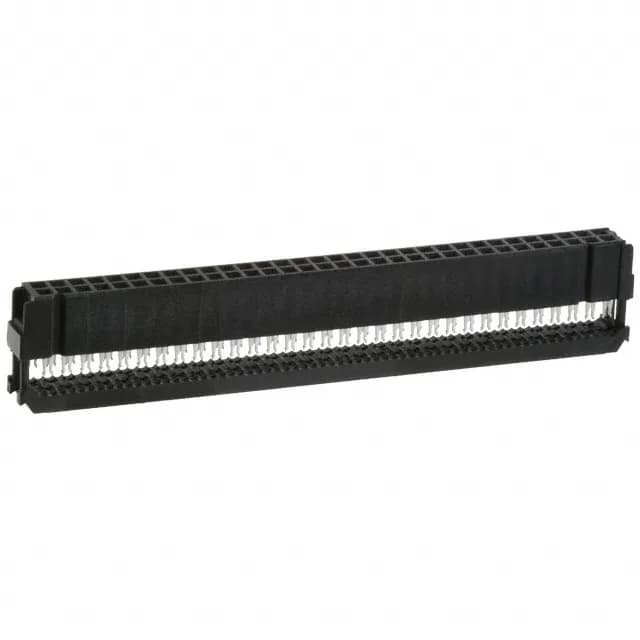

TE Connectivity 1-1658620-2 AMP-Latch Receptacle, 64 Pos
MPN1-1658620-2
Active
TE Connectivity AMP-Latch receptacle, 64 positions, 0.100" (2.54mm) pitch, IDC termination, 26-28 AWG ribbon cable, gold 15.0µin contacts, free-hanging, black, tube.
$4.5300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMP-Latch
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Wire type | Ribbon Cable |
| Type | Forked |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Wire gauge | 26-28 AWG |
| Cable termination | IDC |
| Color | Black |
| Pitch | 0.100\" (2.54mm) |
| Package | Tube |
| Features | Feed Through |
| Row spacing | 0.100\" (2.54mm) |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 64 |
| Contact finish thickness | 15.0µin (0.38µm) |
Product details
Frequently asked questions
What does the 1-1658620-2 mate with?
It terminates 26-28 AWG ribbon cable via IDC.
