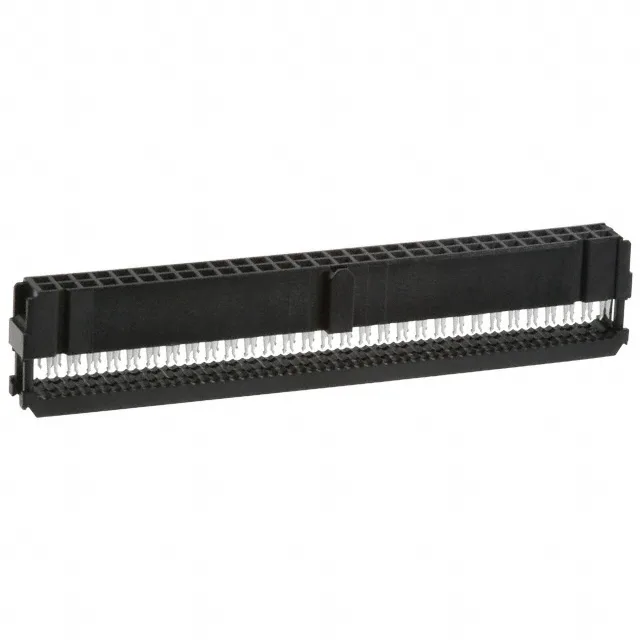

The TE Connectivity AMP-Latch 1-1658621-1 is a 60-position IDC receptacle built for mass-termination of 26-28 AWG ribbon cable. It lands in the AMP-Latch series as a dual-row, 0.100" pitch free-hanging connector — the standard footprint for parallel cable-to-header interconnects in telecom backplanes, industrial controllers, and test equipment. The black housing carries a polarizing key to prevent mis-mating with the matching header, and the feed-through feature allows daisy-chaining multiple receptacles along the same ribbon cable without breaking the signal path.
Gold at this thickness on the mating surface resists fretting corrosion when the cable is flexed near the IDC termination point, which is the typical failure mode in rack-mounted equipment where the harness gets dressed and re-dressed during maintenance. The forked contact geometry wipes the header pin on insertion, clearing surface oxides before the electrical path is established.
Ribbon Cable Fit and Termination
This receptacle terminates 26-28 AWG ribbon cable with the standard IDC slot pattern — the insulation is displaced by the forked contacts as the cable is pressed into the housing. The free-hanging mount means the connector sits on the cable end, not on a panel or board; it mates with the matching AMP-Latch shrouded header (typically the 1-1658621-1's counterpart in the same series, which uses a square-post pin grid). The polarizing key ensures the cable is oriented correctly — a reversed insertion won't seat.
