TE Connectivity AMP Connectors 1-1658621-2

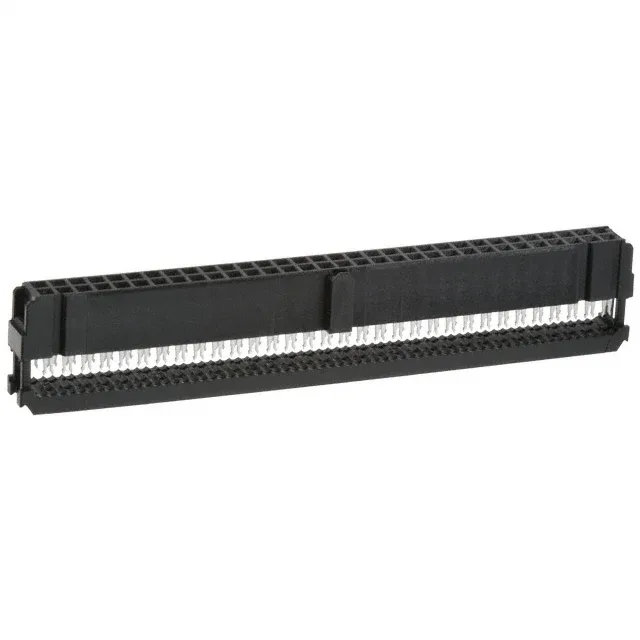

TE Connectivity 1-1658621-2 AMP-Latch 64-Pin IDC Receptacle

MPN 1-1658621-2
Active

TE Connectivity AMP-Latch, 64-position IDC receptacle, 0.100" (2.54mm) pitch, 2 rows, 26-28 AWG ribbon cable, gold 15.0µin contacts, free-hanging, black, tube.

$4.5300 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSRoHS Compliant
IncotermsDAP / DDP Available
SeriesAMP-Latch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-1658621-2 specifications
ParameterValue
SeriesAMP-Latch
Wire typeRibbon Cable
TypeForked
MountingFree Hanging (In-Line)
Connector typeReceptacle
Wire gauge26-28 AWG
Cable terminationIDC
ColorBlack
Pitch0.100\" (2.54mm)
PackageTube
FeaturesFeed Through, Polarizing Key
Row spacing0.100\" (2.54mm)
Contact finishGold
Rows2
Positions64
Contact finish thickness15.0µin (0.38µm)

Product details

64-Position IDC Receptacle for 0.100" Ribbon Cable

It uses a 0.100" (2.54mm) pitch on both contacts and rows, forming a standard square grid that matches common 0.100" ribbon cable. A polarizing key and feed-through feature prevent mis-mating and allow daisy-chaining along the cable. The housing is black, free-hanging, and ships in a tube.

The 1-1658621-2 is listed as Active and RoHS Compliant.

The 26-28 AWG range covers standard 0.100" ribbon cable gauges. The feed-through feature lets the cable pass through the connector body, which is useful for daisy-chaining multiple receptacles along the same ribbon.

MPN
1-1658621-2
