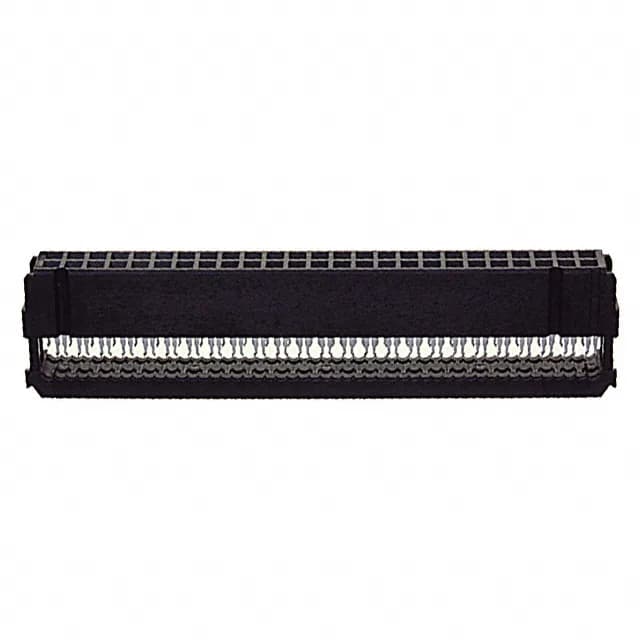

1-1658623-0 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE AMP-Latch 1-1658623-0, 50-Position IDC Receptacle

MPN1-1658623-0
Active

TE Connectivity AMP-Latch receptacle, 1-1658623-0, 50 positions, 2 rows, 0.100" (2.54mm) pitch, IDC termination for 26-28 AWG ribbon cable, gold-palladium contacts, black, free hanging.

$4.0800Ref. price · indicative, final on quote
1-1658623-0 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

1-1658623-0 Technical Specifications
ParameterValue
SeriesAMP-Latch
Wire typeRibbon Cable
GenderForked
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Wire gauge26-28 AWG
Cable terminationIDC
ColorBlack
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesFeed Through
Row spacing0.100\" (2.54mm)
Contact finishGold or Gold-Palladium
Rows2
Positions50
Contact finish thickness30.0µin (0.76µm)

Product details

50-Position IDC Receptacle for Ribbon Cable Harnesses

The TE Connectivity AMP-Latch 1-1658623-0 is a 50-position, 2-row receptacle designed for mass-termination to 26-28 AWG ribbon cable via IDC contacts. The black housing includes a feed-through feature that lets the ribbon cable pass straight through the connector body, simplifying cable routing in tight chassis layouts.

Contact Finish and Termination Details

That plating grade is specified for reliable signal-level connections over repeated mating cycles — the gold-palladium alloy resists corrosion better than straight gold in mixed-gas environments, which matters for telecom or industrial control cabinets where the connector stays mated for years. IDC termination pierces the ribbon cable insulation in one press operation; the 26-28 AWG range covers the standard ribbon cable gauges used for parallel data buses and I/O interfaces.

Frequently asked questions

Where can I buy the TE Connectivity 1-1658623-0?

Submit a request for quote (RFQ) for current availability and pricing — stock and lead time are confirmed at quote time.

What wire gauge does 1-1658623-0 support?

The 1-1658623-0 accepts 26-28 AWG ribbon cable for its IDC termination.

Is 1-1658623-0 a male or female connector?

The 1-1658623-0 is a receptacle (female) connector, designed to mate with a 50-position AMP-Latch pin header.
