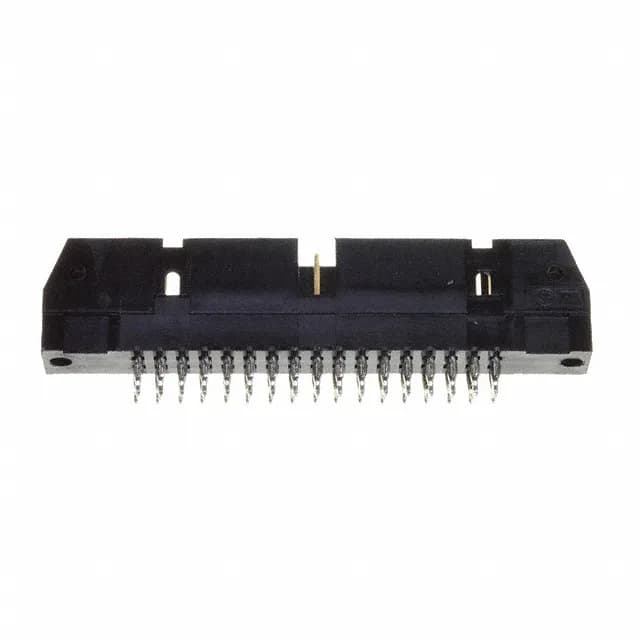

34-position AMP-Latch header for cable-to-board duty
The full 4-wall shroud protects the 0.240" (6.10 mm) mating pin length during blind mating and prevents pin damage from off-angle insertion.
Termination options and contact finish
Termination is listed as press-fit and solder — the press-fit option allows solderless backplane assembly, while the solder tail gives a conventional through-hole path. Contact material is phosphor bronze.
Current, temperature, and flammability ratings
Keying and mounting features
Fastening type is push-pull, meaning no locking latch — the shroud and pin friction hold the mated pair; for high-vibration environments, consider a latching variant or secondary retention.
Product status is Active. RoHS3 compliant. Packaged in tray.
