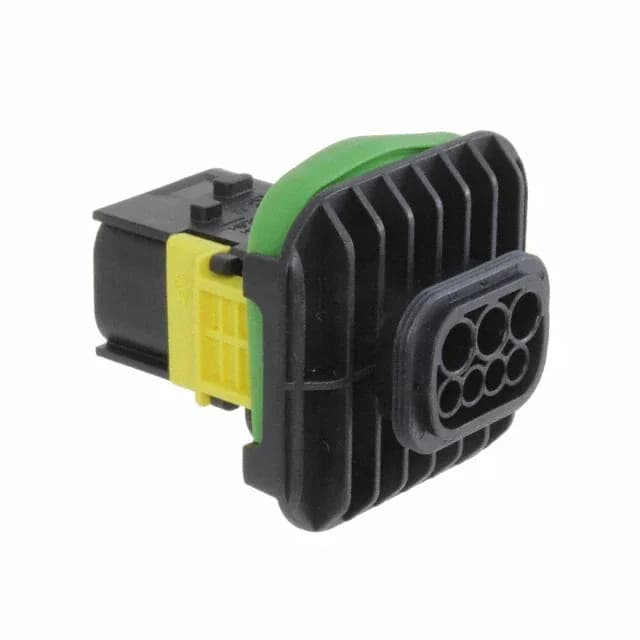

The TE Connectivity 1-1670214-1 is a 7-position, 2-row plug housing from the Heavy Duty Sealed Connector Series, MCP 1.5K/2.8 family. It is a panel-mount housing with a slide-on fastening system and a mounting flange, designed for sealed wire-to-board or wire-to-wire interconnects in demanding environments. The 6.00 mm row spacing and 2-row layout suit it for mid-density power and signal harnesses where sealing and mechanical retention are required.
Sealed Construction and Mounting
The housing carries the Sealed feature and a Mounting Flange, indicating it is intended for applications where the mated connector pair must resist moisture, dust, and vibration. IP67 only when it's mated — if the connector sits unmated in a washdown zone, cap the open half to maintain the seal integrity.
Procurement Note: Contacts Not Included
The housing accepts tab-type contacts with crimp termination, so the harness builder must select the correct contact part number for the wire size and seal plug if a sealed wire entry is needed.
