TE Connectivity AMP Connectors 1-1670990-1 — Connector Housings

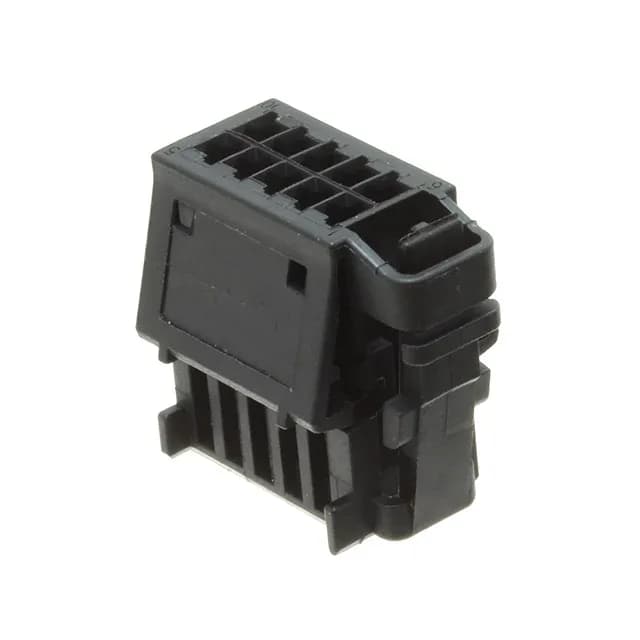

TE 1-1670990-1 Micro Quadlok Receptacle Housing, 10 Pos

MPN1-1670990-1
Active

TE Connectivity Micro Quadlok receptacle housing, 1-1670990-1, 10 positions, 2 rows, 0.098" (2.50mm) pitch, female socket contacts, crimp termination, free hanging, latch holder, black PBT, -40°C to 120°C.

$0.7400Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-1670990-1 datasheet (PDF)
RoHSRoHS Compliant
SeriesMicro Quadlok
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

1-1670990-1 specifications
ParameterValue
SeriesMicro Quadlok
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Holder
Operating temperature-40°C ~ 120°C
ColorBlack
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled
NoteContacts Not Included
Pitch0.098\" (2.50mm)
PackageBox
Rows2
Contact terminationCrimp
Positions10

Product details

10-Position Micro Quadlok Receptacle Housing for Harness Assembly

The 2.50mm pitch is a common automotive-grade spacing that balances current density with board real estate — tight enough to keep the connector compact, wide enough to maintain creepage distances for 12V and 24V systems. The 10 circuits in a dual-row layout give a 2x5 arrangement, which means the mating header will have two rows of 5 pins.

The housing accepts the Micro Quadlok female crimp contacts, which are terminated to wire before insertion. The mating half is a Micro Quadlok plug header (male pin header) with the same 2.50mm pitch and 10-circuit count, typically ordered as a separate TE part number.

Construction and Material Choices

The black color is standard for the Micro Quadlok series. The free-hanging (in-line) mounting type means it is used as a splice or inline connector in a harness, not mounted to a panel or PCB.

Frequently asked questions

Where can I buy the TE 1-1670990-1 Micro Quadlok housing and how do I get a price?

No stock-holding or fixed price is listed here.

What contacts are compatible with the 1-1670990-1 Micro Quadlok housing?

The 1-1670990-1 accepts Micro Quadlok female socket crimp contacts, which are ordered separately. The housing does not include contacts — the BOM must specify the matching TE crimp terminal for the wire gauge being used.

What is the mating connector for 1-1670990-1?

The mating half is a Micro Quadlok plug header (male pin header) with the same 2.50mm pitch and 10-circuit count, 2-row layout. The plug header carries the locking ramp that engages with the latch holder on this receptacle.
