TE Connectivity AMP Connectors 1-1717834-4 — Connector Housings

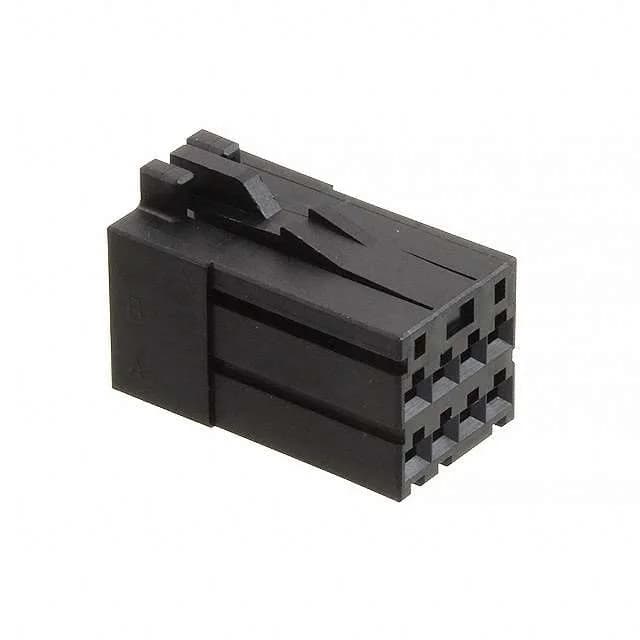

TE Dynamic D-2100 1-1717834-4, 8-Pos Receptacle Housing

MPN1-1717834-4
Active

TE Connectivity Dynamic D-2100 series, receptacle housing, 8 positions, 2 rows, 0.098" (2.50mm) pitch, crimp termination, latch lock, black thermoplastic, free hanging.

$1.0600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesDynamic D-2100
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-1717834-4 specifications
ParameterValue
SeriesDynamic D-2100
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Lock
Operating temperature-55°C ~ 105°C
ColorBlack
Insulation materialThermoplastic, Polyester, Glass Filled
NoteContacts Not Included
Pitch0.098\" (2.50mm)
PackageBulk
Row spacing0.148\" (3.75mm)
Rows2
Contact terminationCrimp
Positions8

Product details

Housing for a Dual-Row Power/Signal Harness

The TE Connectivity 1-1717834-4 is an 8-position, dual-row receptacle housing from the Dynamic D-2100 series, built for wire-to-board or wire-to-wire power and signal interconnects in industrial and appliance equipment. The housing is a free-hanging (in-line) design with a latch lock that clicks into the mating header for vibration-resistant retention.

This receptacle housing mates with the Dynamic D-2100 series pin headers — look for the matching 8-position, dual-row, 2.50mm pitch header with latch lock ramps. The crimp terminal.

Frequently asked questions

Does 1-1717834-4 include contacts?

No, the 1-1717834-4 is a receptacle housing only — contacts are not included. You must order the Dynamic D-2100 female crimp terminals separately.

What is the pitch of 1-1717834-4?

The mating header must match this 2.50mm pitch.
