Through-hole solder termination, 42-circuit plug
The 1-1718093-1 is the 42-circuit, 3-row member of TE's Junior Power Timer plug family, terminated by through-hole solder and housed in a shrouded 4-wall PBT shell with a mounting flange.

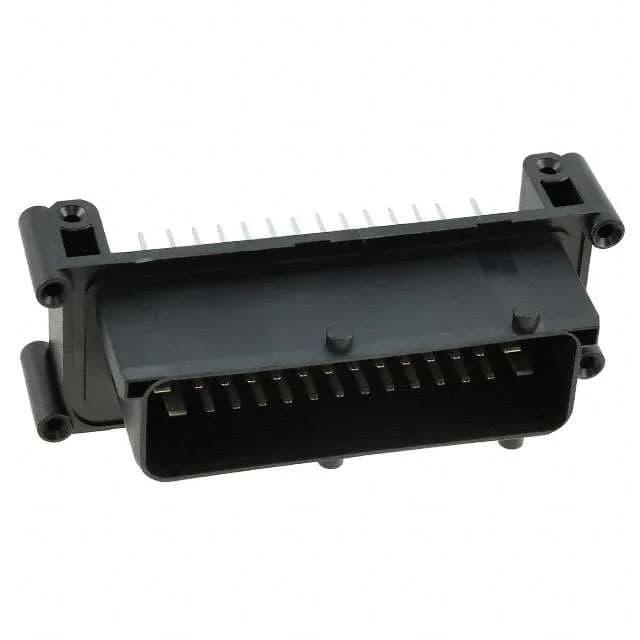

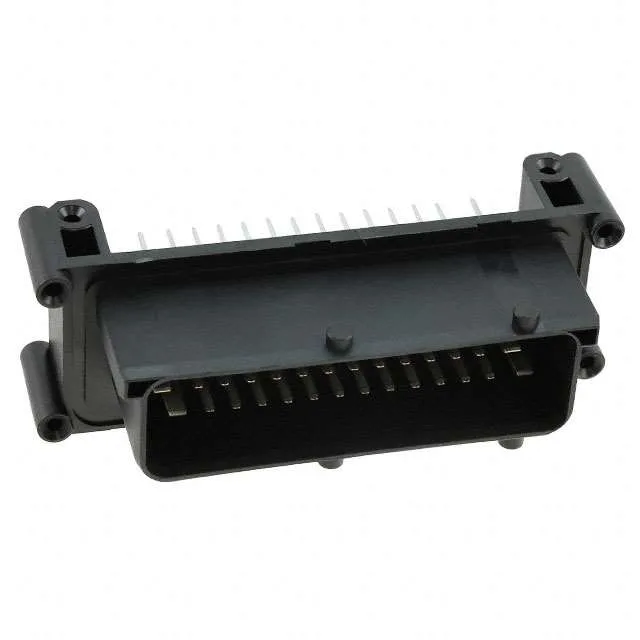

TE 1-1718093-1 Junior Power Timer Plug, 42 Pos 5.00mm
MPN1-1718093-1
Active
TE Connectivity AMP Connectors Junior Power Timer plug, order code 1-1718093-1, 42 positions, 3 rows, 5.00 mm pitch, tin-plated tab contacts, through-hole solder termination, shrouded 4-wall housing with mounting flange.
$13.4400Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Junior Power Timer |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Plug |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 1.461\" (37.10mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 3 |
| Pitch | 0.197\" (5.00mm) |
| Positions | 42 |
| Row spacing - mating | 0.197\" (5.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.315\" (8.00mm) |
Product details
Frequently asked questions
What is the listed style and series for 1-1718093-1?
The style is Board to Cable/Wire and the series is Junior Power Timer.
