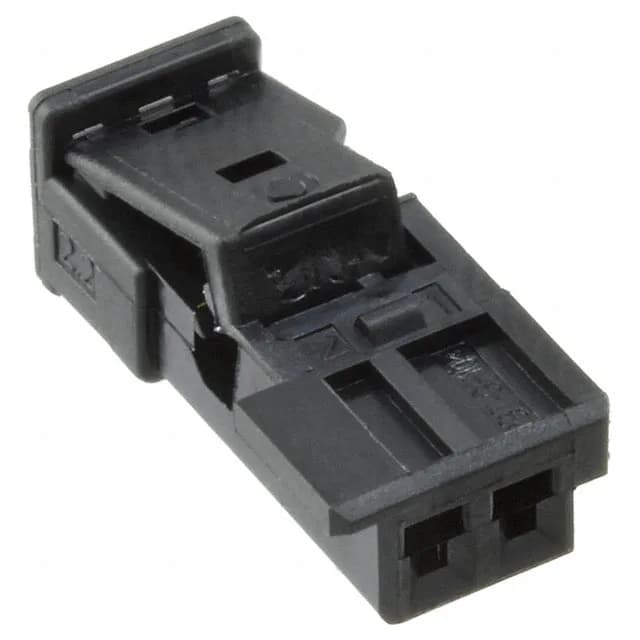

TE Connectivity Micro Quadlok receptacle housing, 1-1718333-1, 2 positions, 1 row, 0.100" (2.54 mm) pitch, free-hanging (in-line) mount, crimp termination, black PBT housing, contacts not included.
| Parameter | Value |
|---|---|
| Series | Micro Quadlok |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Latch Holder |
| Operating temperature | -40°C ~ 80°C |
| Color | Black |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Note | Contacts Not Included |
| Pitch | 0.100\" (2.54mm) |
| Package | Box |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 2 |
The TE Connectivity 1-1718333-1 is a 2-position receptacle housing from the Micro Quadlok series, designed for free-hanging (in-line) wire-to-wire or wire-to-board harness applications.
The 'Contacts Not Included' note means the matching female socket crimp terminals must be ordered separately.
Designers need to confirm PCB layout compatibility.
Buyers must order contacts separately to avoid assembly delay.
Sourcing buyers need immediate availability from authorized distributors.
Lifecycle status affects long-term design and procurement decisions.
Budget planning requires current unit price and minimum order quantities.
Engineers need to verify correct part number for their application to avoid mismatches.
