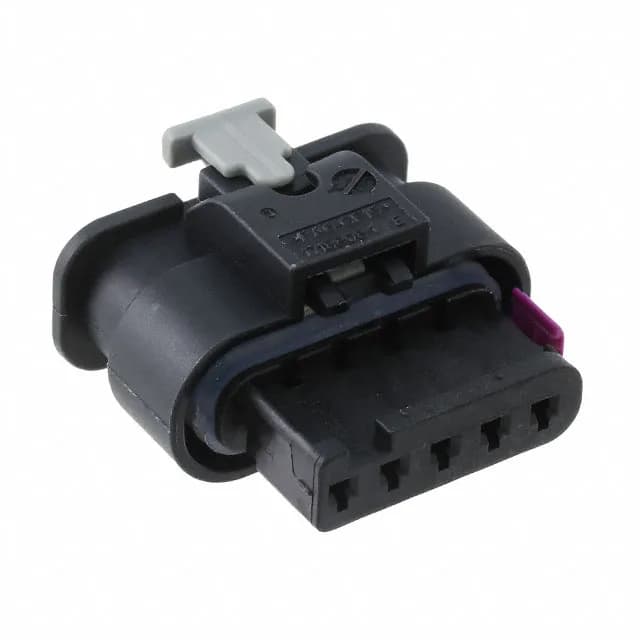

MCON 5-Position Receptacle Housing for Harness Builds
It belongs to the MCON series, a family of compact, high-temperature connectors widely used in automotive engine compartments, transmission interfaces, and industrial sensor harnesses where exposure to thermal cycling and vibration is routine.
What Fits and What Doesn't — Contacts and Mating Half
The housing accepts the standard MCON 1.2 mm or 1.5 mm terminal system (depending on the wire gauge and current requirement); the crimp terminal is inserted from the rear and retained by a lance in the cavity. No secondary lock is listed for this housing, so terminal retention relies on the primary lance — verify the terminal part number against the wire size before committing the BOM. The latch lock on this receptacle engages with a matching ramp on the header side. No IP rating is listed for this housing, so it is not sealed against moisture or dust ingress — treat it as an interior or protected-environment connector, not for direct splash or pressure-wash exposure.
