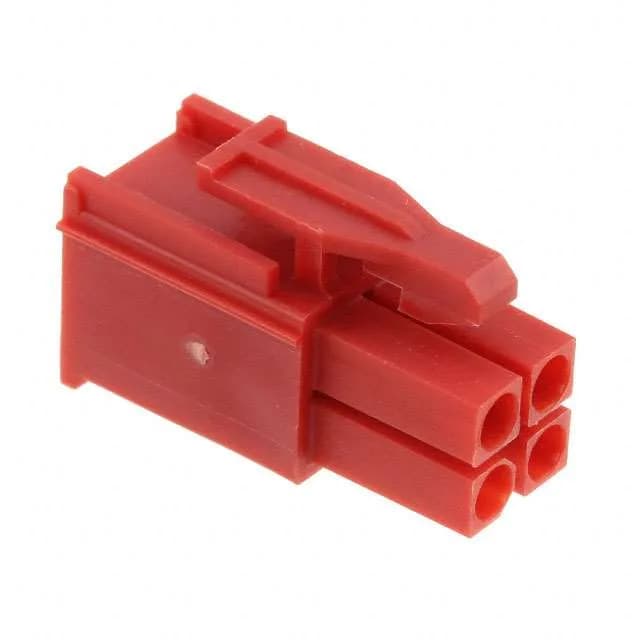

TE Connectivity Mini-Universal MATE-N-LOK plug housing, 1-172167-2, 4 positions, 2 rows, 4.14mm pitch, crimp termination, latch lock, free hanging, red PA66, contacts not included.
| Parameter | Value |
|---|---|
| Series | Mini-Universal MATE-N-LOK |
| Type | Male or Female |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Fastening type | Latch Lock |
| Operating temperature | -20°C ~ 105°C |
| Color | Red |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Note | Contacts Not Included |
| Pitch | 0.163\" (4.14mm) |
| Package | Bulk |
| Row spacing | 0.163\" (4.14mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 4 |
The 1-172167-2: It uses a 0.163" (4.14mm) pitch and a latch lock for positive retention in free-hanging (in-line) wire-to-wire or wire-to-board harnesses.
The housing accepts either gender, so the same shell works for both plug and receptacle sides depending on which terminal you load.
The latch lock snaps audibly on full mate, giving a vibration-resistant connection. The 2-row, 4-position layout means two circuits per row at 4.14mm row spacing.
The 1-172167-2 accepts Mini-Universal MATE-N-LOK crimp terminals in either male or female gender. The contacts are ordered separately; the housing itself does not include them. Use the TE crimp tool specified for the wire gauge you are terminating.
The pitch is 0.163" (4.14mm) centerline, with the same 0.163" (4.14mm) row spacing. This is the standard Mini-Universal MATE-N-LOK pitch, matching the series headers and receptacles.
