TE Connectivity AMP Connectors 1-172171-9 — Connector Housings

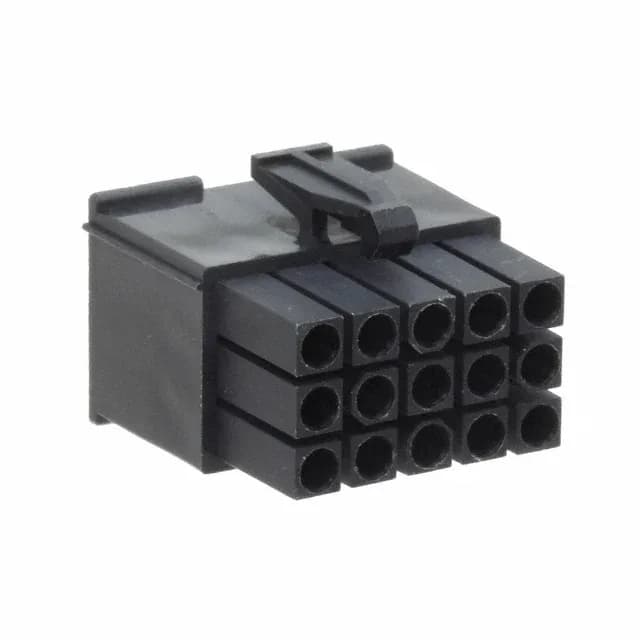

TE Connectivity 1-172171-9 Mini-Universal MATE-N-LOK Plug

MPN1-172171-9
Active

TE Connectivity Mini-Universal MATE-N-LOK plug housing, 1-172171-9, 15 positions, 3 rows, 0.163" (4.14mm) pitch, crimp termination, latch lock, free hanging, black PA66, -20°C to 105°C.

$1.5700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMini-Universal MATE-N-LOK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1-172171-9 specifications
ParameterValue
SeriesMini-Universal MATE-N-LOK
TypeMale or Female
MountingFree Hanging (In-Line)
Connector typePlug
Fastening typeLatch Lock
Operating temperature-20°C ~ 105°C
ColorBlack
Insulation materialPolyamide (PA66), Nylon 6/6
NoteContacts Not Included
Pitch0.163\" (4.14mm)
PackageBulk
Row spacing0.163\" (4.14mm)
Rows3
Contact terminationCrimp
Positions15

Product details

The 0.163" (4.14 mm) pitch and matching 0.163" (4.14 mm) row spacing give it a compact footprint for a 3-row, 15-circuit layout — the extra row packs more circuits into a shorter housing length compared to a 2-row design at the same pitch.

This housing ships empty. The housing accepts either gender, so you pick the terminal based on whether this half is the plug or the receptacle in your harness. Common mating terminals include the 170366 series for the female side and 170359 for the male side; confirm wire gauge compatibility with your chosen terminal before committing the BOM line.

The free-hanging (in-line) mounting type means this housing is intended for cable-to-cable or cable-to-panel connections, not PCB mounting.

Frequently asked questions

Where can I buy the TE Connectivity 1-172171-9?

Submit a request for current pricing and availability — confirmed at quote time.

Does the 1-172171-9 include contacts?

No — the housing ships empty. The note "Contacts Not Included" means you must order the crimp terminals separately. The housing accepts either male or female contacts from the Mini-Universal MATE-N-LOK series.

What is the pitch and row configuration of the 1-172171-9?

The pitch is 0.163" (4.14 mm) with a matching row spacing of 0.163" (4.14 mm). The housing has 15 positions arranged in 3 rows.

Which mating connector does the 1-172171-9 use?

It mates with the matching Mini-Universal MATE-N-LOK receptacle housing of the same 15-position, 4.14 mm pitch configuration — look for the 172169 series receptacle.
