160-Position Board-to-Board Receptacle for Dense Parallel Stacking
The 1-1734037-6: The 0.050-inch pitch packs 160 circuits into a dual-row arrangement, making it suited for backplane or mezzanine-style stacking where board real estate is tight.

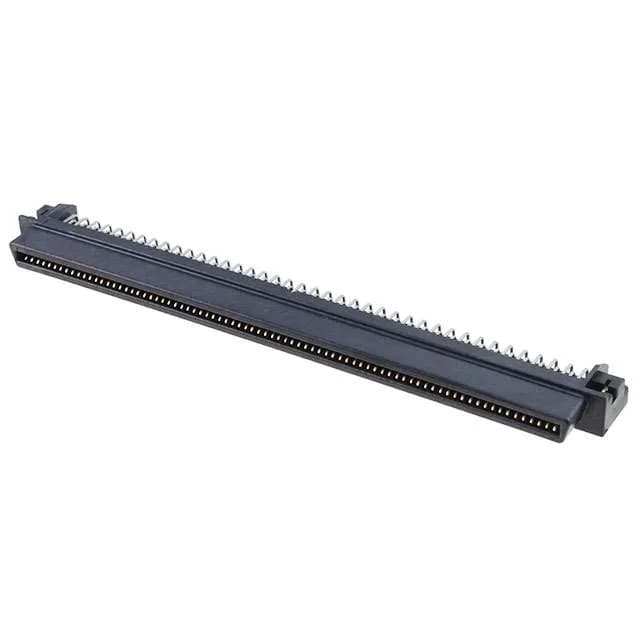

TE Connectivity 1-1734037-6 CHAMP .050 I Receptacle, 160 Pos
MPN1-1734037-6
Active
TE Connectivity CHAMP.050 I board-to-board receptacle, 1-1734037-6, 160 positions, 2 rows, right-angle through-hole, gold flash contacts, board lock.
$10.7800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCHAMP .050 I
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Board to Board |
| Series | CHAMP .050 I |
| Mounting | Through Hole, Right Angle |
| Connector type | Outer Shroud Contacts |
| Package | Box |
| Features | Board Lock |
| Termination | Solder |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 160 |
| Contact finish thickness | Flash |
Product details
Frequently asked questions
Is the 1-1734037-6 compatible with the CHAMP.050 I series?
Yes, the 1-1734037-6 is a member of the CHAMP.050 I series, a board-to-board receptacle with 160 positions in a dual-row, right-angle through-hole configuration. It mates with the matching CHAMP.050 I header.
What is the pinout of the 1-1734037-6 connector?
The pinout is defined by the 160 positions in 2 rows at 0.050-inch pitch. The exact signal assignment depends on the board layout and is detailed in the manufacturer's product drawing.
