TE Connectivity AMP Connectors 1-1734099-0 — Centronics Connectors

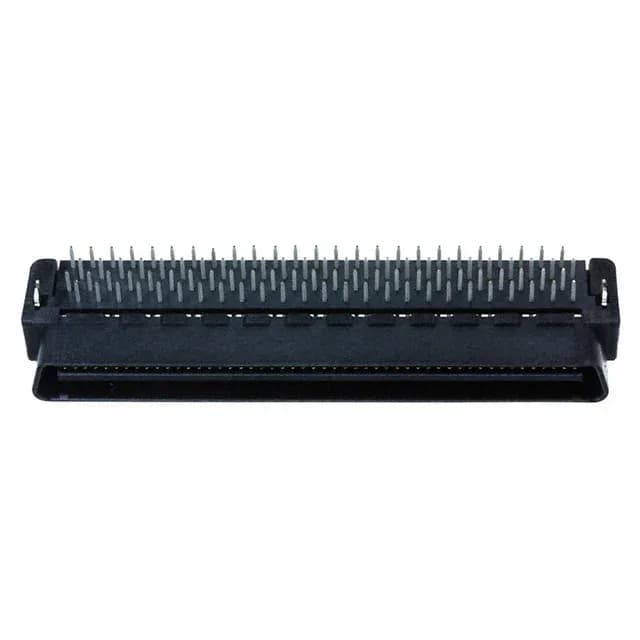

TE CHAMP .050 I 1-1734099-0, 100-Pos Right-Angle Plug

MPN1-1734099-0
Active

TE Connectivity CHAMP.050 I board-to-board plug, 100 positions, 2 rows, 0.050" pitch, through-hole right-angle solder termination, 30.0µin gold contact finish, board lock feature.

$9.5800Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1-1734099-0 datasheet (PDF)
RoHSROHS3 Compliant
SeriesCHAMP .050 I
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1-1734099-0 specifications
ParameterValue
TypeBoard to Board
SeriesCHAMP .050 I
MountingThrough Hole, Right Angle
Connector typeCenter Strip Contacts
PackageTray
FeaturesBoard Lock
TerminationSolder
Contact finishGold
Rows2
Positions100
Contact finish thickness30.0µin (0.76µm)

Product details

100-Position Right-Angle Plug for Dense Board-to-Board Interconnects

The TE Connectivity CHAMP.050 I 1-1734099-0 is a 100-position board-to-board plug with center strip contacts arranged in two rows. The 0.050-inch pitch packs a high circuit count into a compact footprint — typical for parallel-board stacking in telecom or server backplanes where signal density matters. Right-angle solder tails route the connection parallel to the PCB, suiting edge-mount or mezzanine layouts with tight z-height budgets.

ROHS3 compliant.

Frequently asked questions

What is the mating connector for 1-1734099-0?

The 1-1734099-0 is a plug from the CHAMP.050 I series. It mates with the matching CHAMP.050 I receptacle — confirm the receptacle order code for the same 100-position, 0.050-inch pitch footprint.

Is 1-1734099-0 RoHS compliant?

Yes, the 1-1734099-0 is rated ROHS3 Compliant, meeting the latest RoHS directive requirements.
