10-position 1.00 mm FPC ZIF for vertical board mounting

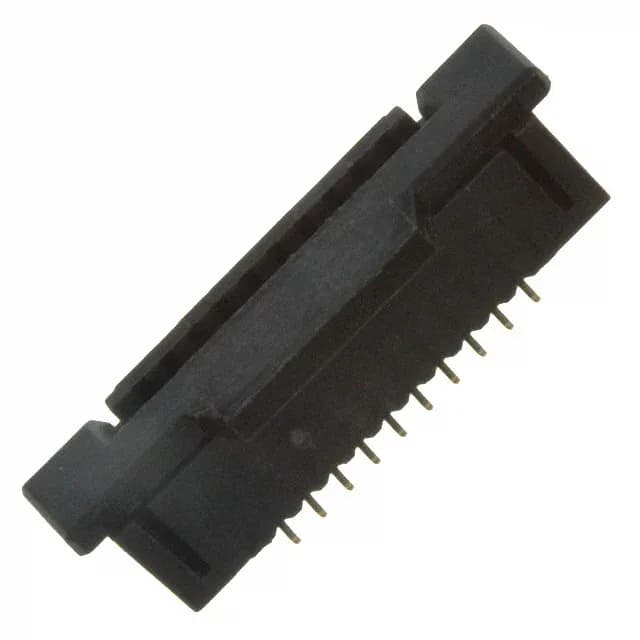

The 1-1734248-0 is a 10-position, 1.00 mm pitch FPC connector from TE Connectivity AMP Connectors, using a vertical SMT orientation and Zero Insertion Force (ZIF) slide-lock actuator. It accepts FPC cables 0.30 mm thick, with gold flash on phosphor bronze contacts rated for 20 mating cycles.
ZIF slide lock and vertical contact orientation
The ZIF mechanism uses a slide lock to secure the FPC without insertion force — the actuator slides over the cable after insertion, reducing wear on the pads. The housing and actuator are both black polyamide (PA9T, Nylon 9T) with a UL94 V-0 flammability rating.
